Ford Meter Box vbb77-24hb-11-77-nl 2 in Copper Setter Ball Valve

Product Description

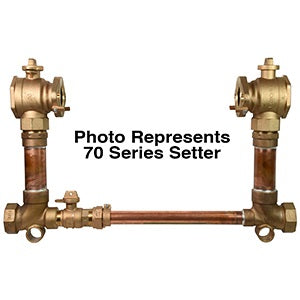

The FORD METER BOX vbb77-24hb-11-77-nl is a 2-inch flanged copper setter designed for water meter installations. It features a no-lead ball valve by ball valve configuration standing 24 inches high with horizontal inlet and horizontal outlet connections. The unit includes a high bypass assembly and terminates in 2-inch female iron pipe (FIP) connections on both ends. At 46.4 pounds, this is a heavy-duty commercial-grade setter built for direct burial meter service. It is installed by licensed plumbers and water utility contractors in metered water service applications.

This copper setter is suited for residential and commercial water meter settings where a flanged connection is required. The horizontal inlet and horizontal outlet orientation fits standard in-line meter pit configurations. The integrated high bypass valve allows flow to continue through the bypass circuit during meter service or replacement without fully interrupting supply. The 24-inch height accommodates typical meter pit depth requirements common in municipal and utility installations.

Key Features

• No-lead construction meets federal and state lead-free drinking water requirements
• Ball valve by ball valve design provides positive shutoff on both sides of the meter
• Integrated high bypass allows uninterrupted service during meter maintenance
• Horizontal inlet and horizontal outlet (HZ IN, HZ OUT) configuration for in-line meter pit installations
• 2-inch FIP x 2-inch FIP end connections for standard pipe threading
• 24-inch body height sized for typical meter pit depth applications

Compatibility

Designed as an OEM-style flanged copper setter for 2-inch water meter installations requiring no-lead ball valve shutoffs and a high bypass circuit in utility and municipal meter pit service.

Installation Notes

Installation should be performed by a licensed plumber or water utility contractor in accordance with local plumbing codes and applicable AWWA standards. Shut off the main water supply and depressurize the line before removing any existing meter setter or connecting this unit. Ensure pipe threads are clean and properly taped or doped before making FIP connections. Confirm no-lead compliance requirements with the local authority having jurisdiction prior to installation.

Technical Specifications

• Connection Size: 2 inches
• End Connections: 2-inch FIP x 2-inch FIP
• Configuration: Flanged, Ball Valve x Ball Valve
• Inlet/Outlet Orientation: Horizontal In, Horizontal Out
• Body Height: 24 inches
• Bypass Type: High Bypass
• Lead-Free: Yes, No Lead
• Weight: 46.4 pounds
• Box Quantity: 1

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbb77-24hb-11-77-nl
