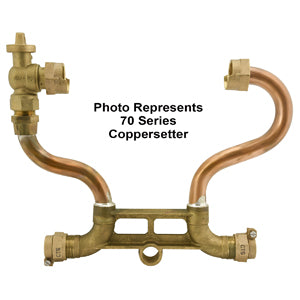

Ford Meter Box vb74-12w-11-44-nl 1 in No-lead Coppersetter

Product Description

The FORD METER BOX vb74-12w-11-44-nl is a 1-inch no-lead coppersetter designed for residential and light commercial water meter installations. This meter setter incorporates a 3/4-inch by 1-inch ball valve and features a plain tube configuration with a 12-inch height, horizontal inlet, and horizontal outlet. The dual 1-inch double-purpose connections provide flexible hookup options for copper service lines. Licensed plumbers and water utility contractors install this fitting as a direct interface between the service line and the water meter, providing shutoff capability and a precise meter connection point. Approximate shipping weight is 10.0 pounds.

This coppersetter is suited for potable water service line applications where a no-lead-compliant fitting is required. The horizontal inlet and horizontal outlet orientation accommodates typical meter pit and meter vault configurations. The 12-inch setter height is a common dimension for standard residential meter box installations, making this unit a practical choice for new construction and meter replacement projects.

Key Features

• No-lead construction meets safe drinking water compliance requirements for potable water systems
• Integrated 3/4-inch by 1-inch ball valve provides reliable shutoff at the meter
• 12-inch height suits standard meter pit and vault depth requirements
• Horizontal inlet and horizontal outlet configuration for in-line meter installations
• 1-inch double-purpose connections on both ends accommodate common copper service line fittings
• Plain tube ends allow field cutting and adaptation to site-specific service line lengths

Compatibility

Designed as an OEM-style replacement or new-installation coppersetter for 1-inch residential and light commercial water meter configurations requiring no-lead-compliant components.

Installation Notes

Installation of meter setters is typically performed by licensed plumbers or water utility technicians in accordance with local plumbing codes and IPC requirements. Shut off the water service at the curb stop before beginning any work, and verify the meter pit is clear of standing water. Do not overtighten compression or plain tube connections, as this can deform the fitting ends. Always confirm local authority having jurisdiction (AHJ) approval for no-lead fitting requirements before installation.

Technical Specifications

• Inlet Size: 1 inch
• Outlet Size: 1 inch
• Ball Valve Size: 3/4 inch by 1 inch
• Setter Height: 12 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Connection Type: Plain Tube, Double Purpose
• Lead Compliance: No Lead
• Approximate Weight: 10.0 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vb74-12w-11-44-nl
