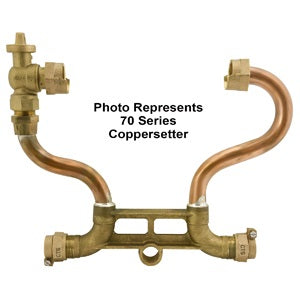

Ford Meter Box vb73-18w-11-33-7-5-nl 3/4 in Coppersetter

Product Description

The FORD METER BOX vb73-18w-11-33-7-5-nl is a 3/4-inch no-lead coppersetter designed for potable water meter installations. It connects a water meter to a copper service line using a ball valve inlet configuration with plain tube ends, providing a secure, code-compliant interface between the meter and the distribution system. The unit stands 18 inches high and is built to accommodate a 7.5-inch meter spacing, making it suitable for standard residential and light commercial meter sets. Plumbers and water utility contractors install this type of fitting during new service installations or meter replacements. The no-lead construction meets federal and state requirements for wetted components in potable water systems.

This coppersetter is intended for use in potable water meter pit or vault installations where horizontal inlet and horizontal outlet orientation is required. The 3/4-inch double-purpose end connections on both the inlet and outlet sides allow compatibility with standard copper service tubing. Typical applications include residential water service laterals and small commercial metering assemblies where the meter setter serves as the primary shutoff and meter-support assembly between the service line and the meter body.

Key Features

• No-lead construction meets federal Safe Drinking Water Act requirements for potable water wetted components
• 18-inch height accommodates standard meter pit depth requirements
• 7.5-inch meter spacing fits common residential water meter dimensions
• Horizontal inlet and horizontal outlet orientation for in-line meter installation
• 3/4-inch double-purpose end connections on both sides for flexible field use
• Ball valve integrated into the setter body for service shutoff capability

Compatibility

Designed as an OEM-style replacement or new-installation coppersetter for 3/4-inch potable water meter assemblies requiring horizontal inlet and outlet connections with 7.5-inch meter spacing.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable AWWA standards. Shut off the water service at the curb stop before removing or installing the meter setter. Ensure all connections are made with lead-free solder or approved mechanical fittings as required by local code. Inspect the meter pit or vault for proper bedding and support before setting the final position of the unit.

Technical Specifications

• Connection Size: 3/4 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Setter Height: 18 inches
• Meter Spacing: 7.5 inches
• End Connection Type: Double Purpose Plain Tube
• Lead-Free: Yes (No Lead)
• Weight: 7.46 pounds
• Box Quantity: 6

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vb73-18w-11-33-7-5-nl
