Ford Meter Box UFR1500-SA-8-U Uni-Flange® Series UFR1500

Product Description

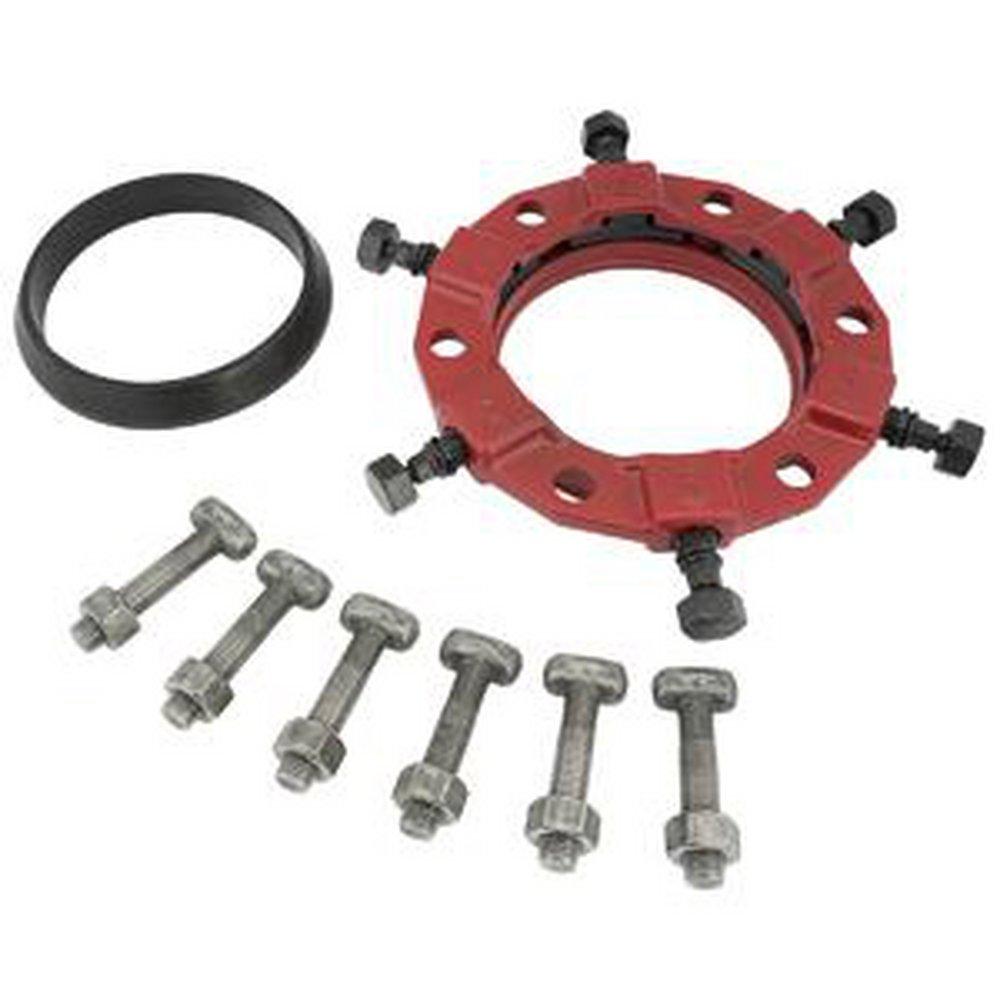

The FORD METER BOX UFR1500-SA-8-U is a Uni-Flange® Series UFR1500, an 8 in. mechanical joint restraint assembly designed for C-900 pipe and C-909 HDPE pipe. This joint restraint eliminates the need to pour concrete thrust blocks. It features full circle contact and support of the pipe wall. The gland, screws, and segments are protected with black Armorguard e-coat.

• Fits C900, C909 and HDPE
• Full circle contact and support of the pipe wall
• Auto-Tork actuating screws with heads specially designed to twist off at the correct installation torque, leaving a hex head for future system maintenance if removal is required

Product Highlights

The UFR1500 series joint restraint is designed for PVC and HDPE pipe, featuring alloy steel and ductile iron construction and Armorguard E-Coat.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-SA-8-U
• Country of Origin: Domestic

Technical Specifications

• ANSI: ANSI A21.11, ANSI C111
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA A-21.11, AWWA C-111
• Application: PVC Pipe, HDPE Pipe
• Coating: Armorguard E-Coat
• Collection: Uni-Flange® Series UFR1500
• End Connection 1: Mechanical Joint
• End Connection 2: Mechanical Joint
• End Connections: Mechanical Joint
• Fits Pipe Size: 8 in
• Material: Ductile Iron, Alloy Steel
• Origin: Domestic
• Product Type: Joint Restraint
