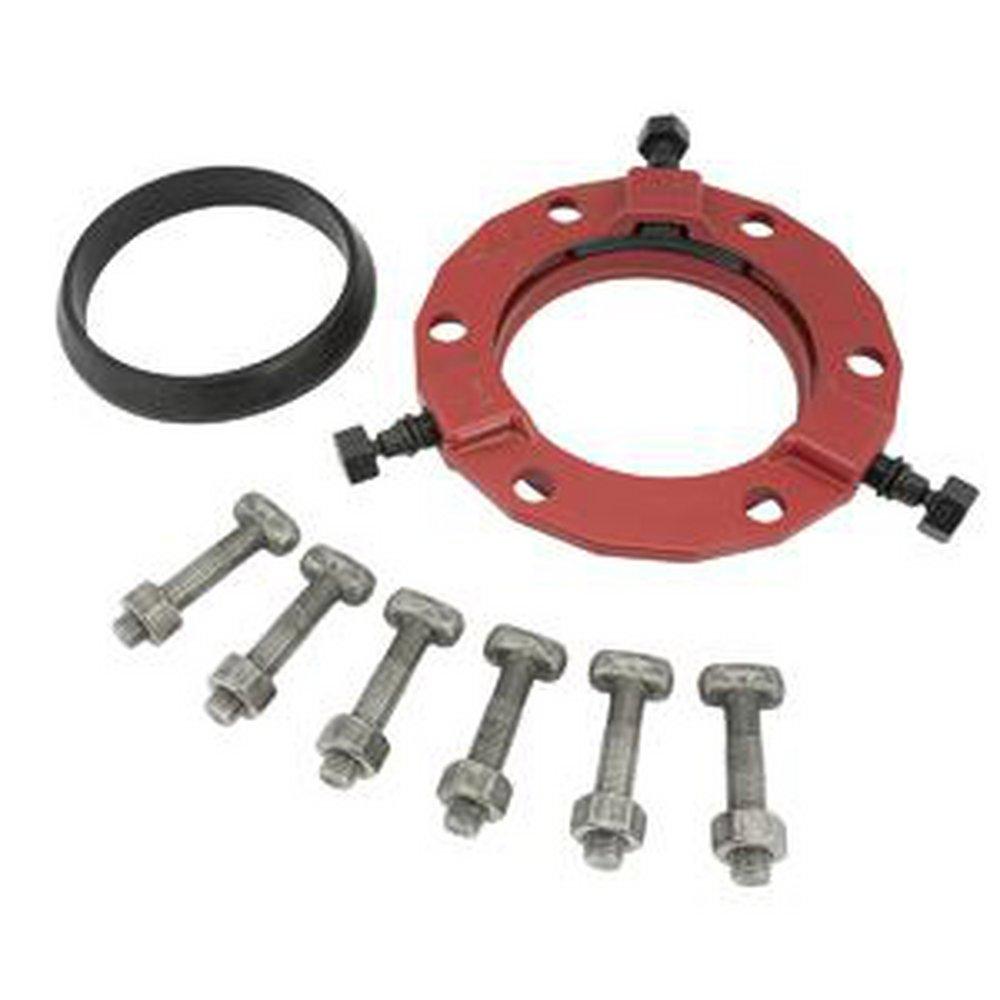

Ford Meter Box UFR1500-CA-8-X-I Uni-Flange® 8 in. Ductile Iron Joint Restraint

Product Description

The FORD METER BOX UFR1500-CA-8-X-I Uni-Flange® eliminates the need for concrete thrust blocks. It features Auto-Turk actuating screws designed to twist off at the correct installation torque, leaving a hex head for future maintenance. The series 1500 offers full circle contact and support of the pipe wall and can be used on C900, C909, ASTM D2241 IPS PVC and HDPE.

• Auto-Turk actuating screws with twist-off heads
• Eliminates the need for concrete thrust blocks
• Full circle contact and support of the pipe wall

Product Highlights

The Uni-Flange® provides reliable joint restraint with easy installation and maintenance.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-CA-8-X-I

Technical Specifications

• Material: Ductile Iron
• Hardware: 304 Stainless Steel
• Gasket: Mechanical joint gasket (AWWA C111)
• Coating: Black epoxy coated using the e-coat process
• Pipe Compatibility: C900, C909, ASTM D2241 IPS PVC and HDPE
• Size: 8 in.
