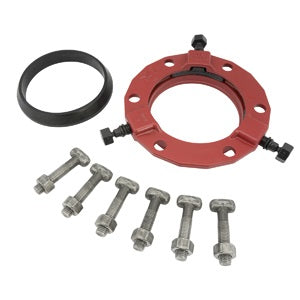

Ford Meter Box UFR1500-CA-8-U Uni-Flange 8 in. Mechanical Joint Ductile Iron Retainer Gland

Product Description

The FORD METER BOX UFR1500-CA-8-U Uni-Flange® is an 8 in. mechanical joint ductile iron retainer gland. Series 1500 eliminates the need to pour expensive and time-consuming concrete thrust blocks. It provides full circle contact and support of the pipe wall. Gland, screws, and segments are protected with black armorguard e-coat.

• Auto-Tork actuating screws twist off at the correct installation torque.
• Eliminates the need for concrete thrust blocks.
• Restraining segments are mechanically retained in pockets.

Product Highlights

The UFR1500-CA-8-U Uni-Flange is designed for use with C900 or C909 PVC pipe and features a black Armorguard E-Coated finish for enhanced protection.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-CA-8-U
• Country of Origin: USA

Technical Specifications

• Type: Wedge Action Restraint
• Collection: Uni-Flange
• Configuration: Pipe Restraint
• Connections: PVC/HDPE
• Domestic Import: Domestic
• Finish: Black Armorguard E-Coated
• Material: Ductile Iron
• Size: 8 in
• Nominal Size: 8 in
• Connection Type: Mechanical Joint
• Hardware Material: Steel
• Outer Diameter: 9.05 in
• Pipe Size: 8 in
• Pressure Rating: 305 psi
• Series: Uni-Flange
• Suitable For Use With: C900 or C909 PVC Pipe
• Brand: FORD
• UNSPSC: 40175300
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: UFR1500-CA-8-U
• Box Quantity: 1
• Standards: ANSI Specified|ASTM A536 Grade 65-45-12|AWWA C111/A21.11|FM Approved|UL Listed
