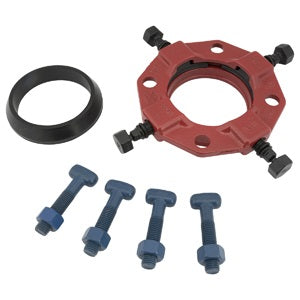

Ford Meter Box UFR1500-CA-8-RB-I Uni-Flange® Series UFR1500 8 in. Mechanical Joint Restraint Assembly

Product Description

The FORD METER BOX UFR1500-CA-8-RB-I Uni-Flange® Series UFR1500 provides full circle contact and support of the pipe wall. This series 1500 joint restraint can be used on AWWA C900, AWWA C909 PVCO or HDPE without any point loading. It features Auto-Turk actuating screws with heads designed to twist off at the correct installation torque.

• Full circle contact and support of the pipe wall
• Can be used on AWWA C900, AWWA C909 PVCO or HDPE without any point loading
• Auto-Turk actuating screws with heads specially designed to twist off at the correct installation torque

Product Highlights

The UFR1500 series eliminates the need to pour concrete thrust blocks. Gland, screws and segments are black epoxy coated. Gland is colored red for identification.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-CA-8-RB-I
• Country of Origin: Global

Technical Specifications

• ANSI: ANSI A21.11, ANSI C111
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA A-21.11, AWWA C-111
• Application: PVC Pipe
• Coating: Epoxy, Blue Fluorocarbon
• Collection: Uni-Flange® Series UFR1500
• End Connection 1: Mechanical Joint
• End Connection 2: Mechanical Joint
• End Connections: Mechanical Joint
• Fits Pipe Size: 8 in
• Material: Ductile Iron, Alloy Steel
• Product Type: Joint Restraint
