Ford Meter Box UFR1500-CA-6-X-I Uni-Flange® 6 in. Ductile Iron Joint Restraint

Product Description

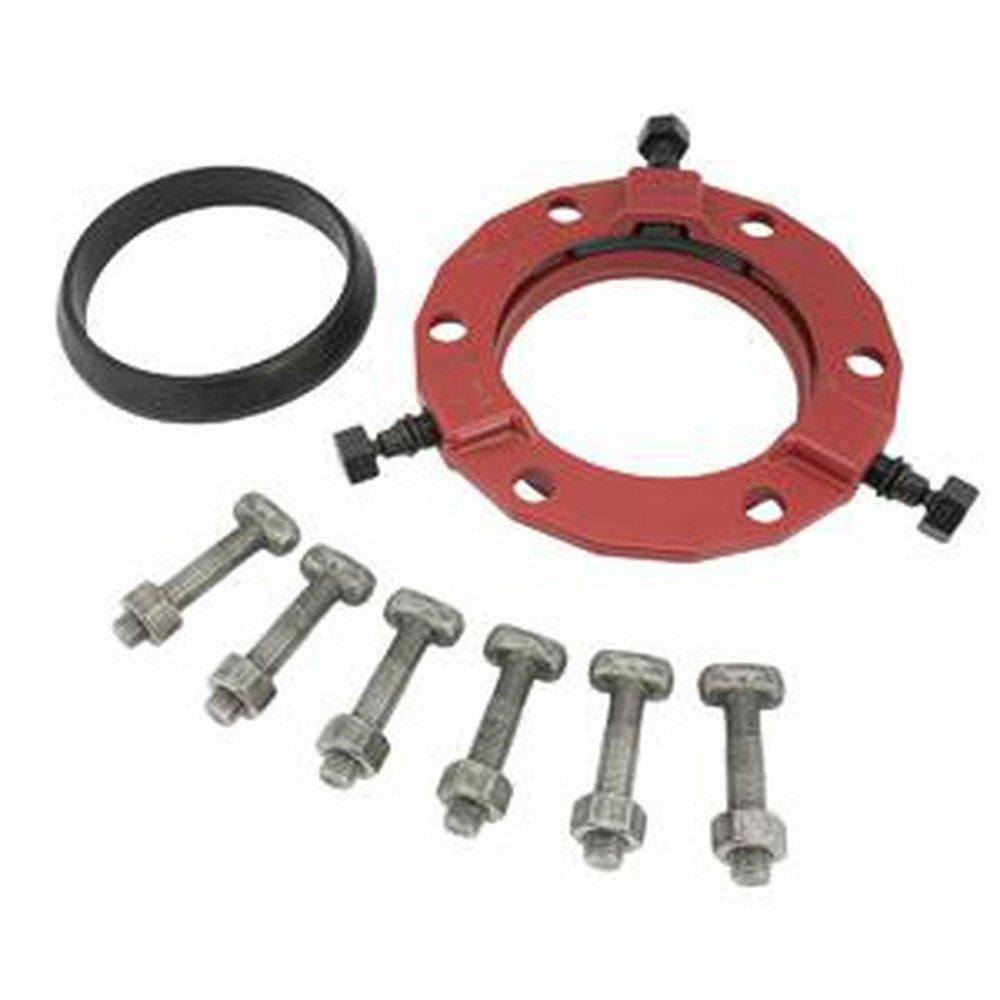

The FORD METER BOX UFR1500-CA-6-X-I Uni-Flange® Series 1500 eliminates the need for concrete thrust blocks. It provides full circle contact and support of the pipe wall and can be used on C900, C909, ASTM D2241 IPS PVC and HDPE without point loading. It includes a mechanical joint gasket (AWWA C111) and a set of 304 stainless steel t-bolt and nuts per ASTM A193 and A194.

• Full circle contact and support of the pipe wall
• Can be used on C900, C909, ASTM D2241 IPS PVC and HDPE without any point loading
• Auto-Turk actuating screws with heads specially designed to twist off at the correct installation torque, leaving hex head for future system maintenance or removal

Product Highlights

The Uni-Flange® joint restraint is epoxy coated and has mechanically retained restraining segments in pockets.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-CA-6-X-I
• Country of Origin: Global

Technical Specifications

• ANSI: ANSI A21.11, ANSI C111
• ASTM: ASTM A-193, ASTM A-194, ASTM A-536 Grade 65-45-12
• AWWA: AWWA A-21.11, AWWA C-111
• Application: Waterworks, PVC Pipe, PVCO Pipe, HDPE Pipe
• Coating: E-Coat Epoxy
• Collection: Uni-Flange®
• End Connection 1: Wedge
• End Connections: Wedge
• FM Approved: No
• Fits Pipe Size: 6 in
• Material: Ductile Iron, Stainless Steel
• Material Type: 304
• NSF Certified: No
• Origin: Global
• Product Type: Joint Restraint
• UL Listed: No
• Type: Wedge Action Restraint
• Nominal Size: 6 in
• Connection Type: Mechanical Joint
• Hardware Material: Steel
• Domestic/Import: Import
• Finish: Black Epoxy Coated
• Fitting/Connector Type: Joint Restraint
• Outer Diameter: 6.9 in
• Pipe Size: 6 in
• Series: Uni-Flange®
• Suitable For Use With: C900/C909 PVC and HDPE pipe
• Brand: FORD
• UNSPSC: 40175300
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: UFR1500-CA-6-I
