Ford Meter Box UFR1500-CA-6-U Uni-Flange® 6 in. Mechanical Joint Ductile Iron Retainer Gland

Product Description

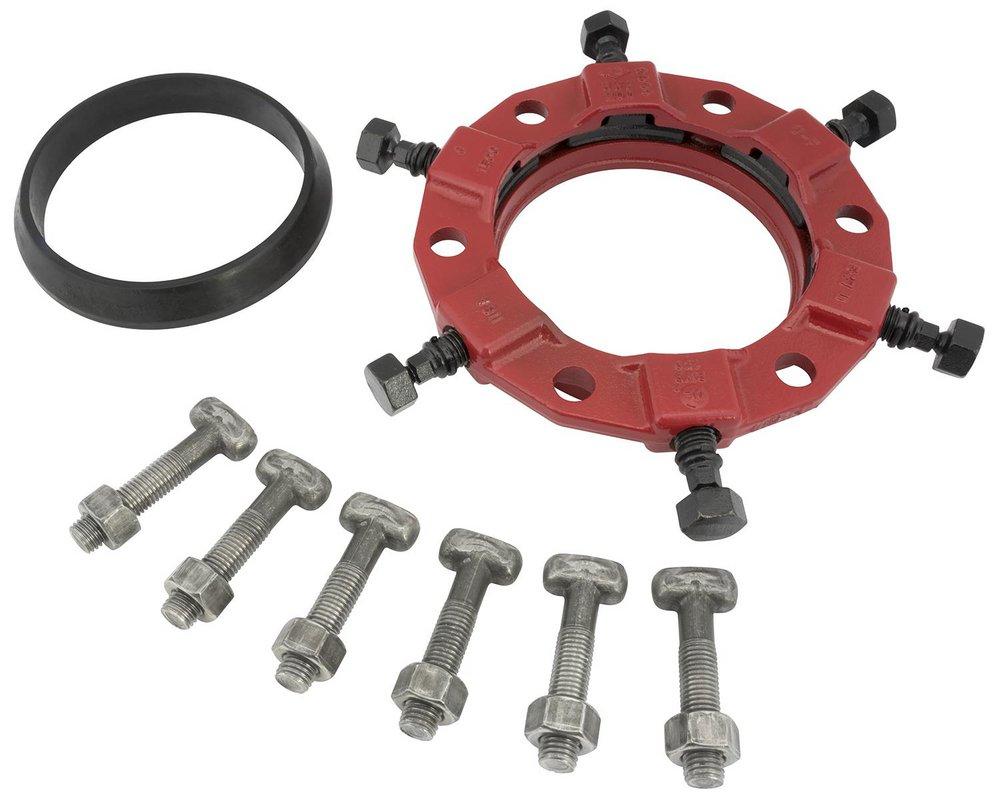

The FORD METER BOX UFR1500-CA-6-U Uni-Flange® is a 6 in. mechanical joint ductile iron retainer gland. Series 1500 eliminates the need to pour expensive and time-consuming concrete thrust blocks. It provides full circle contact and support of the pipe wall. Auto-torque actuating screws with heads are specially designed to twist off at the correct installation torque.

• Eliminates the need for concrete thrust blocks
• Provides full circle contact and support of the pipe wall
• Features auto-torque actuating screws

Product Highlights

The Uni-Flange® retainer gland ensures secure pipe restraint with its robust design and user-friendly installation.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-CA-6-U
• Country of Origin: United States of America

Technical Specifications

• Type: Wedge Action Restraint
• Series: 1500-CA
• Nominal Size: 6 in
• Standards: ANSI Specified|ASTM A536 Grade 65-45-12|AWWA C111/A21.11|FM Approved|UL Listed
• Pressure Rating: 305 psi
• Diameter: 6.9 inch OD
• For Use With: C909 PVC Pipes
• Connection Type: Mechanical Joint
• Material: Ductile Iron
• Hardware Material: Steel
• Domestic/Import: Import
• Finish: Black Armorguard E-Coated
• Outer Diameter: 6.9 in
• Pipe Size: 6 in
• Brand: FORD
• UNSPSC: 40175300
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: UFR1500-CA-6-U
