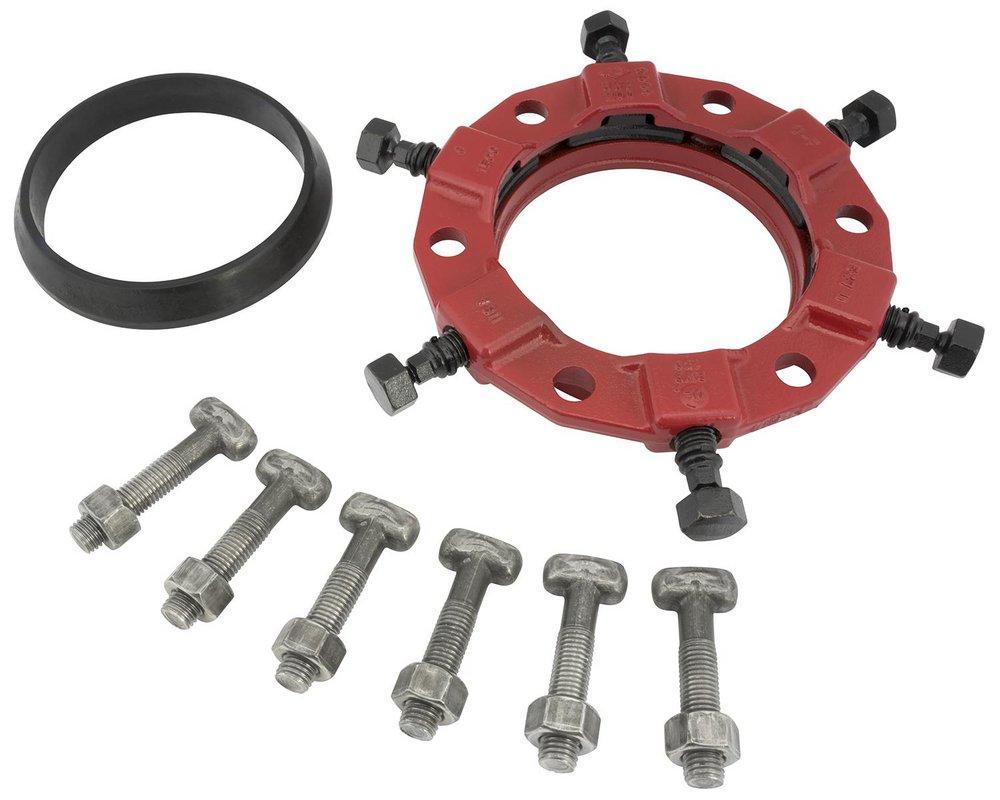

Ford Meter Box UFR1500-CA-6-I Uni-Flange® 6 in. Ductile Iron Mechanical Joint Retainer

Product Description

The FORD METER BOX UFR1500-CA-6-I Uni-Flange® Series 1500 eliminates the need for concrete thrust blocks. It features Auto-Turk actuating screws designed to twist off at the correct installation torque, leaving a hex head for maintenance. It provides full circle contact and support of the pipe wall and can be used on C900, C909, ASTM D2241 IPS PVC and HDPE.

• Auto-Tork actuating screws with heads specially designed to twist off at the correct installation torque, leaving a hex head in case future system maintenance or removal is required
• Restraining segments are mechanically retained in pockets
• Series 1500 eliminates the need to pour expensive and time consuming concrete thrust blocks

Product Highlights

The Uni-Flange® Series 1500 offers a convenient solution for pipe joint restraint, providing all necessary components for installation.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-CA-6-I

Technical Specifications

• Type: Wedge Action Restraint
• Nominal Size: 6 in
• Connection Type: Mechanical Joint
• Material: Ductile Iron
• Hardware Material: Steel
• Domestic/Import: Import
• Finish: Black Epoxy Coated
• Fitting/Connector Type: Joint Restraint
• Outer Diameter: 6.9 in
• Pipe Size: 6 in
• Series: Uni-Flange
• Suitable For Use With: C900/C909 PVC and HDPE pipe
• Brand: FORD
• UNSPSC: 40175300
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: UFR1500-CA-6-I
