Ford Meter Box UFR1500-CA-4-I Series 4 in. Mechanical Joint Retainer

Product Description

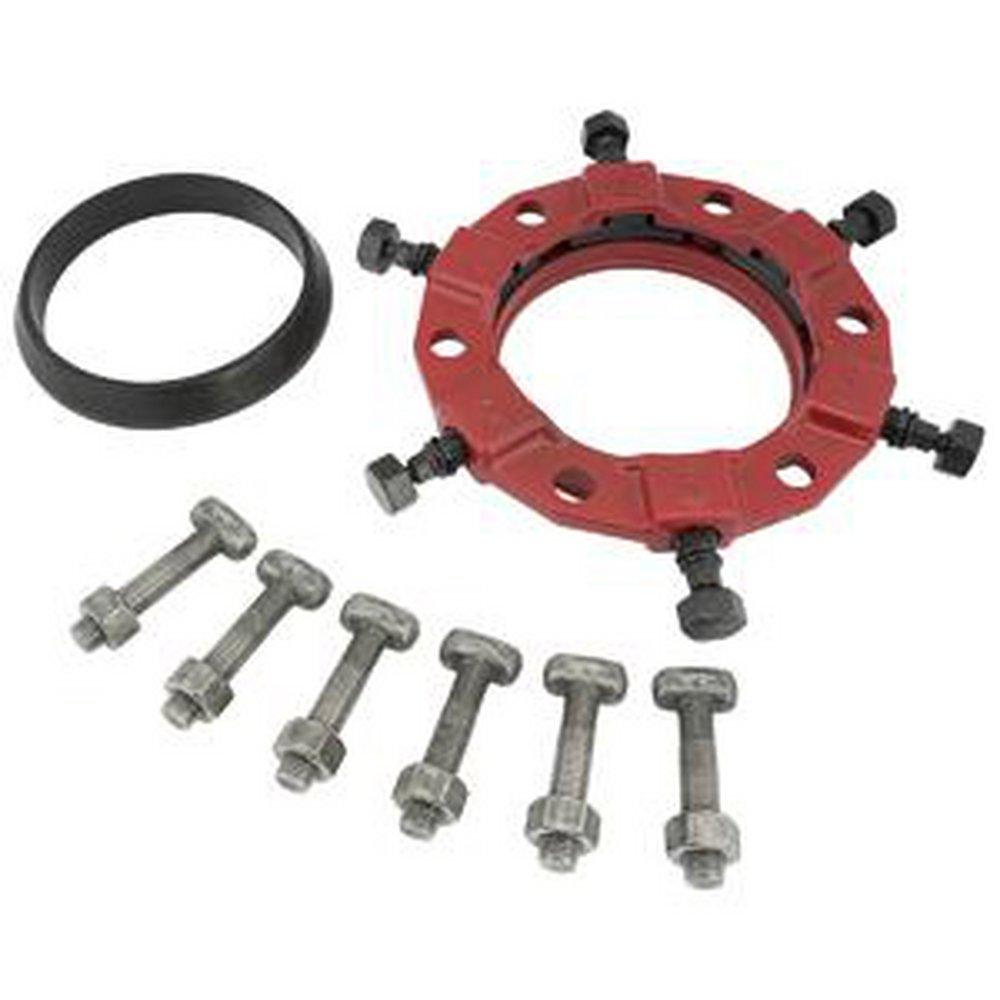

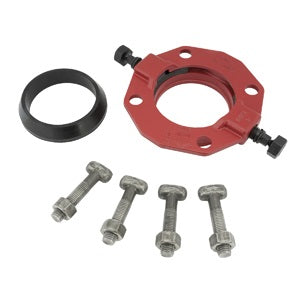

The FORD METER BOX UFR1500-CA-4-I Series 1500 eliminates the need to pour concrete thrust blocks. It features auto-torque actuating screws designed to twist off at the correct installation torque, leaving a hex head for future maintenance. The gland is colored red for identification, with segments mechanically retained in pockets and protected with black armor guard e-coat. It offers full circle contact and support of the pipe wall.

• Auto-torque actuating screws
• Eliminates the need for concrete thrust blocks
• Full circle contact and support of the pipe wall

Product Highlights

The UFR1500-CA-4-I provides a reliable mechanical joint restraint with features like auto-torque screws and full circle pipe support.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-CA-4-I
• Country of Origin: Domestic

Technical Specifications

• Box Quantity: 1
• ANSI: ANSI A21.11, ANSI C111
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA A-21.11, AWWA C-111
• Application: PVC Pipe, HDPE Pipe
• Coating: Armorguard E-Coat
• Collection: Uni-Flange Series UFR1500
• End Connection 1: Mechanical Joint
• End Connection 2: Mechanical Joint
• End Connections: Mechanical Joint
• Fits Pipe Size: 4 in
• Material: Ductile Iron, Alloy Steel
• Origin: Domestic
• Product Type: Joint Restraint
• Item Name: Pipe Restraint Gland
• Sub Brand: Uni-Flange
• Series: 1500
• Nominal Size: 4 inch
• Connection Type: Mechanical Joint
• Number of Restraint Segments: 2
• Finish: Black Armorguard Epoxy Coated
• Pressure Rating: 350 psi
• Diameter: 4.22 - 4.8 inch Outside Pipe
• Dimension BC: 7-1/2 inch
• For Use With: C900, C909, IPS PVC or HDPE Pipes
• Standards/Approvals: ANSI/AWWA C111, ASTM A536, Prop65 Warning: Cancer and Reproductive Harm @www.P65Warnings.ca.gov, UL Listed
