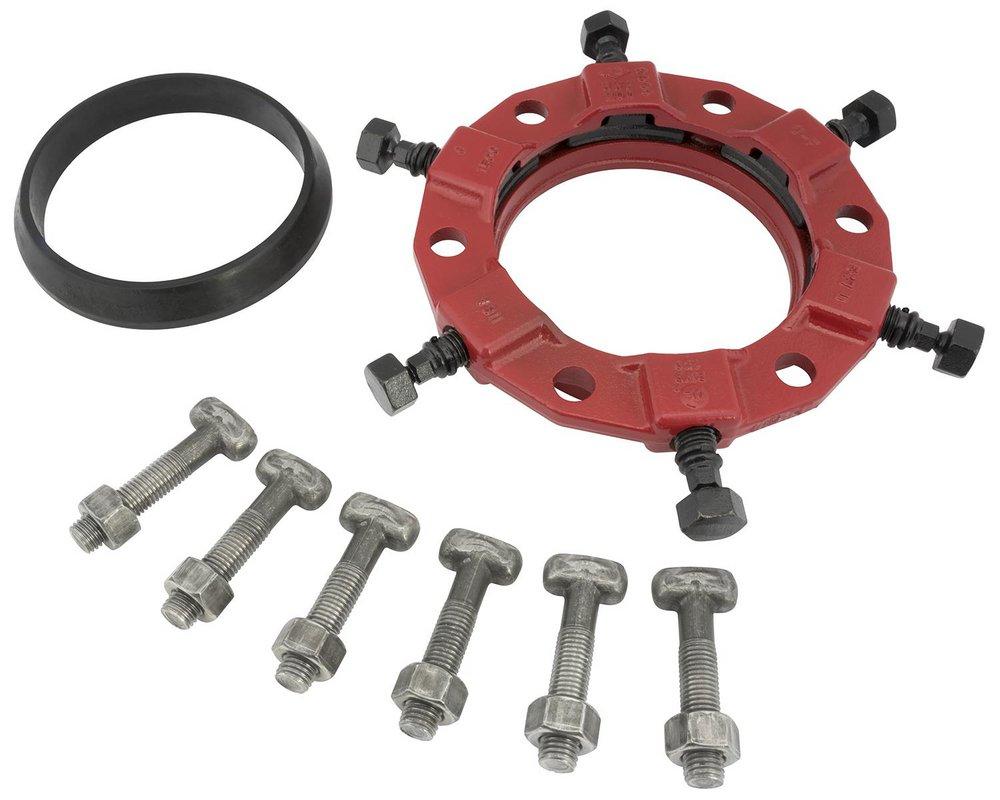

Ford Meter Box UFR1500-CA-18-I Series 18 in. Mechanical Joint Ductile Iron Restraint with Accessories

Product Description

The FORD METER BOX UFR1500-CA-18-I Series 1500 eliminates the need to pour concrete thrust blocks. It features auto-torque actuating screws designed to twist off at the correct installation torque, leaving a hex head for future maintenance. The design includes full circle contact and support of the pipe wall, with mechanically retained segments in pockets.

• Auto-torque actuating screws
• Eliminates the need for concrete thrust blocks
• Full circle contact and support of the pipe wall

Product Highlights

This ductile iron restraint provides full circle support, simplifying installation and maintenance with its innovative design and protective coating.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-CA-18-I

Technical Specifications

• ANSI: ANSI C111, ANSI A21.11
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA A-21.11, AWWA C-111, AWWA C-900, AWWA C-909
• Application: HDPE Pipe, Mechanical Joint, PVC Pipe
• Coating: Epoxy
• Collection: UFR1500 Series
• FM Approved: No
• Fits Pipe Size: 18 in
• Material: Ductile Iron
• Pressure Class: 235#
• Product Type: Joint Restraint
• UL Listed: No
