Ford Meter Box UFR1500-CA-16-I UFR1500 Series 16 in. Mechanical Joint Ductile Iron Retainer Gland

Product Description

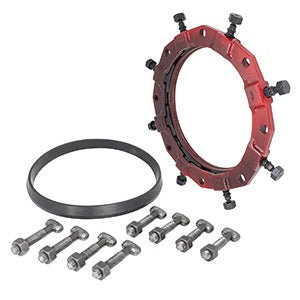

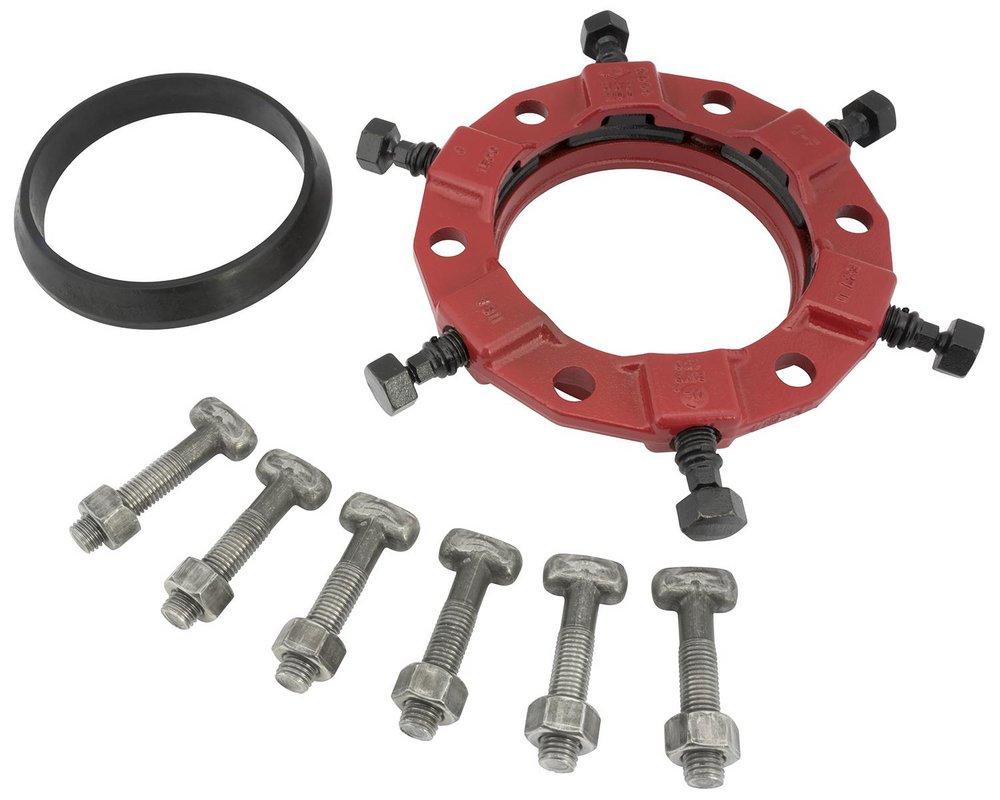

The FORD METER BOX UFR1500-CA-16-I is a UFR1500 Series 16 in. Mechanical Joint Ductile Iron Retainer Gland for PVC Pipe and HDPE Pipe. It eliminates the need to pour expensive and time-consuming concrete thrust blocks. The auto-torque actuating screws are designed to twist off at the correct installation torque. Full circle contact and support of the pipe wall.

• Full circle contact and support of the pipe wall
• Auto-torque actuating screws with heads specially designed to twist off at the correct installation torque leaving a hex head in case future system maintenance or removal is required
• Series 1500 eliminates the need to pour expensive and time consuming concrete thrust blocks

Product Highlights

The UFR1500-CA-16-I gland, screws, and segments are protected with black armor guard e-coat and are mechanically retained in pockets.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-CA-16-I

Technical Specifications

• ANSI: ANSI C111, ANSI A21.11
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA A-21.11, AWWA C-111, AWWA C-900, AWWA C-909
• Application: HDPE Pipe, Mechanical Joint, PVC Pipe
• Coating: Epoxy
• Collection: UFR1500 Series
• FM Approved: No
• Fits Pipe Size: 16 in
• Material: Ductile Iron
• Pressure Class: 235#
• Product Type: Joint Restraint
• UL Listed: No
• Box Quantity: 1
