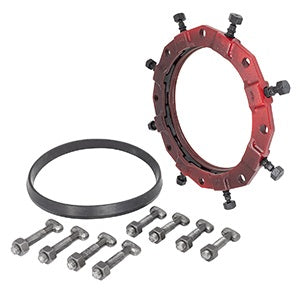

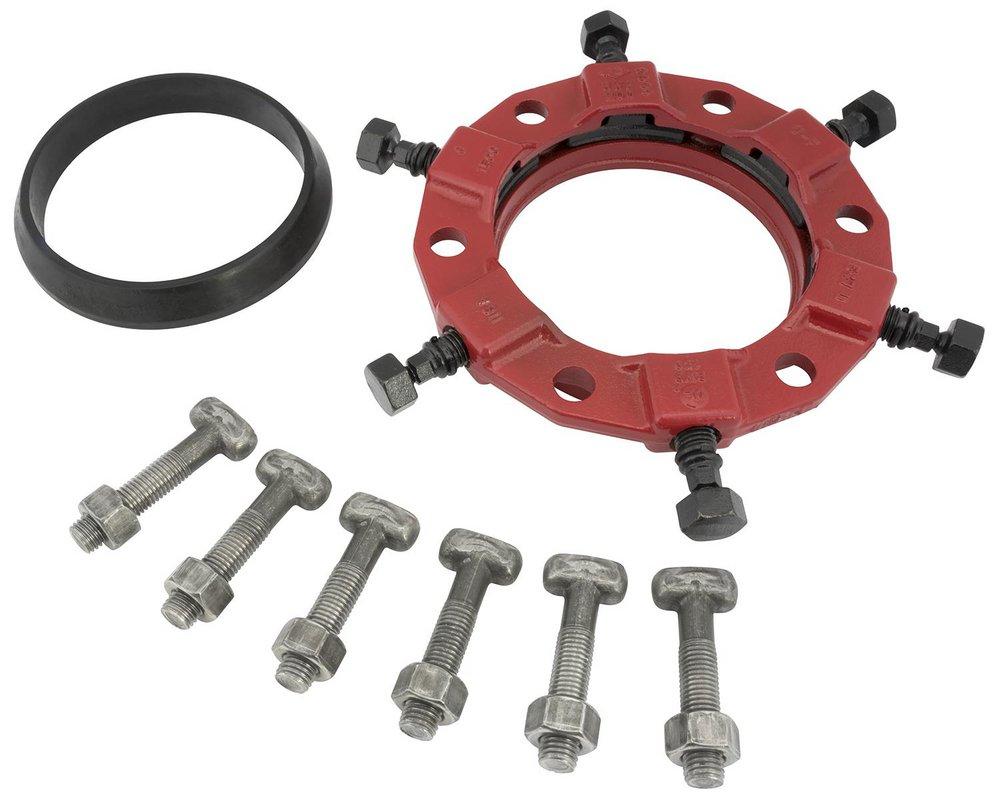

Ford Meter Box UFR1500-CA-12-I Uni-Flange® 12 in. Mechanical Joint Retainer with Accessories

Product Description

The FORD METER BOX UFR1500-CA-12-I Uni-Flange® Series 1500 eliminates the need to pour concrete thrust blocks. It features full circle contact and support of the pipe wall and can be used on C900, C909, ASTM D2241 IPS PVC and HDPE without any point loading. Restraining segments are mechanically retained in pockets.

• Full circle contact and support of the pipe wall
• Can be used on C900, C909, ASTM D2241 IPS PVC and HDPE without any point loading
• Auto-Turk actuating screws with heads specially designed to twist off at the correct installation torque, leaving hex head for future system maintenance or removal

Product Highlights

The Uni-Flange® Series 1500 is designed for use with waterworks, PVC Pipe, PVCO Pipe, HDPE Pipe, and Mechanical Joint applications.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-CA-12-I
• Country of Origin: Global

Technical Specifications

• ANSI: ANSI A21.11, ANSI C111
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA A-21.11, AWWA C-111
• Application: Waterworks, PVC Pipe, PVCO Pipe, HDPE Pipe, Mechanical Joint
• Coating: Armorguard E-Coat
• Collection: Uni-Flange®
• End Connection 1: Wedge
• End Connections: Wedge
• FM Approved: No
• Fits Pipe Size: 12 in
• Material: Ductile Iron
• NSF Certified: No
• Origin: Global
• Product Type: Joint Restraint
• UL Listed: No
• Box Quantity: 1
• Type: Wedge Action Restraint
• Nominal Size: 12 in
• Connection Type: Mechanical Joint
• Hardware Material: Steel
• Domestic/Import: Import
• Finish: Black Epoxy Coated
• Fitting/Connector Type: Joint Restraint
• Outer Diameter: 13.2 in
• Pipe Size: 12 in
• Series: Uni-Flange®
• Suitable For Use With: C900/C909 PVC and HDPE pipe
• Brand: FORD
• UNSPSC: 40175300
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: UFR1500-CA-12-I
