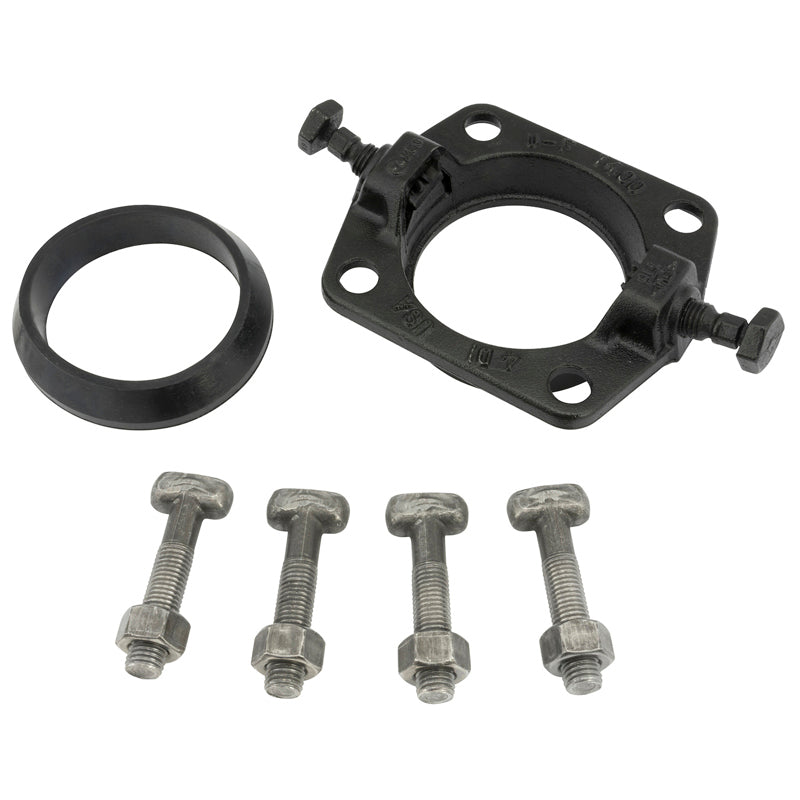

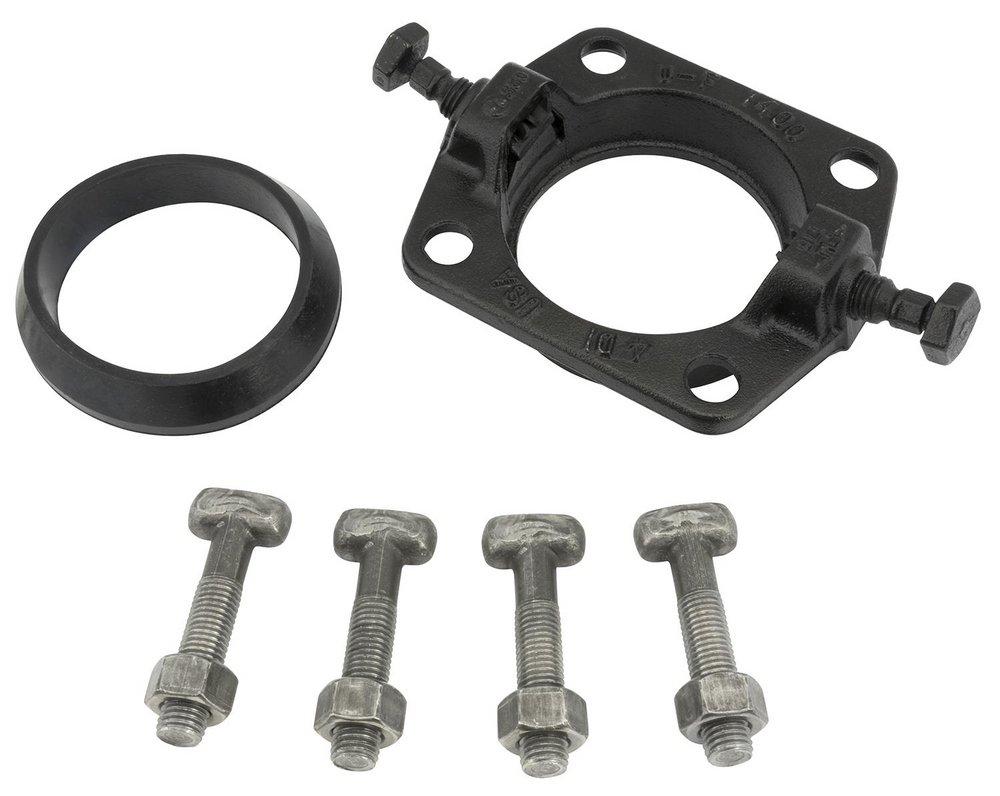

Ford Meter Box UFR1400-DA-4-U Uni-Flange® 4 in. Restrainer

Product Description

The FORD METER BOX UFR1400-DA-4-U Uni-Flange® 4 in. Restrainer eliminates the need for concrete thrust blocks and steel tie rods. It features wedges contoured to fit the pipe and high-pressure capabilities. Auto-torque wedge actuating screws ensure proper installation. The gland, screws, and segments are protected with black armor guard e-coat.

• Wedges are contoured to fit the pipe
• High pressure capabilities
• Auto-torque wedge actuating screws ensure proper installation

Product Highlights

The UFR1400-DA-4-U Uni-Flange® Restrainer offers a reliable and efficient solution for pipe restraint, simplifying installation and enhancing durability.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1400-DA-4-U
• Country of Origin: USA

Technical Specifications

• Material: Ductile Iron
• Number of Wedges: 2
• Pipe Size: 4 in
• Pressure Rating: 350 psi
• Finish: Black Armorguard E-Coated
• Manufacturer: Ford Meter Box
• Manufacturer #: UFR1400-DA-4-U
• Outer Diameter: 4.8
• Series: 1400-DA
• Suitable For Use With: Ductile Iron Pipe
• Type: Wedge Action
• Connection Type: Mechanical Joint
• Collection: Uni-Flange
• Configuration: Pipe Restraint
• Connections: Ductile Iron
• Domestic Import: Domestic
• Size: 4 in
