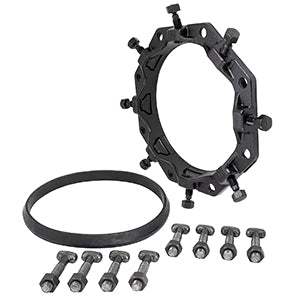

Ford Meter Box ufr1400-da-12-u 12 in Pipe Restraint

Product Description

The FORD METER BOX ufr1400-da-12-u is a 12-inch mechanical pipe restraint coupling designed to secure ductile iron pipe joints against axial separation under pressure. The UFR1400 series uses a restraint mechanism that grips the pipe OD and transfers thrust loads back through the joint, eliminating the need for concrete thrust blocks at many fittings and valve locations. At approximately 35 pounds, this is a full-size, heavy-duty fitting intended for water main and distribution system work. Licensed waterworks contractors and municipal utility crews are the primary installers.

This restraint coupling is used in underground waterworks installations where ductile iron pipe systems require joint restraint at bends, tees, reducers, valves, and dead ends. The 12-inch size suits transmission mains and large distribution lines common in municipal, industrial, and commercial water system projects. The USA designation in the part number indicates domestic manufacture, which is a common specification requirement on public works and federally funded infrastructure contracts.

Key Features

• 12-inch nominal pipe size for large-diameter ductile iron water main applications
• Mechanical restraint design transfers thrust load at the joint without external blocking
• Domestically manufactured to satisfy Buy American and public works specification requirements
• Approximate weight of 35 pounds reflects heavy-duty ductile iron construction
• UFR1400 series designed for use in pressurized waterworks distribution and transmission systems

Compatibility

Designed as an OEM-style restraint coupling for 12-inch ductile iron pipe in potable water distribution and transmission systems. Verify pipe OD and pressure class against FORD METER BOX UFR1400 series dimensional specifications before installation.

Installation Notes

Installation should be performed by a licensed waterworks or utility contractor following applicable AWWA standards and local municipal specifications. Depressurize and isolate the pipeline section before any joint work is performed. Follow the manufacturer torque sequence for all fasteners as outlined in the product installation sheet rather than applying torque values not specific to this fitting. Inspect pipe ends for damage, ovality, and debris before engaging the restraint mechanism.

Technical Specifications

• Nominal Pipe Size: 12 inches
• Weight: 35 pounds (approximate)
• Country of Origin: USA

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: ufr1400-da-12-u
