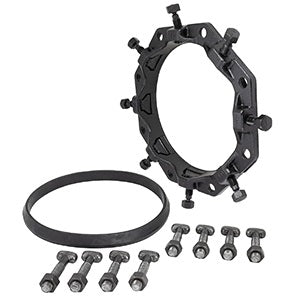

Ford Meter Box UFR1400-DA-10-I Uni-Flange® Wedge Action Restraint 10 in

Product Description

The FORD METER BOX UFR1400-DA-10-I Uni-Flange® Wedge Action Restraint is designed for use with ductile iron pipe. It features multiple points of wedge action against the pipe, increasing resistance as pressure increases. The restraining glands are manufactured of high strength ductile iron, conforming to ASTM A536 requirements.

• Auto-Tork" wedge actuating screws assured proper installation
• Wedges are contoured to fit the pipe
• Gland, screws and segments are protected with black armorguard e-coat

Product Highlights

The UFR1400-DA-10-I restraint maintains flexibility after burial and integrity through controlled expansion during wedging action.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1400-DA-10-I

Technical Specifications

• Box Quantity: 1
• Type: Wedge Action Restraint
• Nominal Size: 10 in
• Connection Type: Mechanical Joint
• Material: Ductile Iron
• Hardware Material: Steel
• Domestic/Import: Import
• Finish: Black Armorguard E-Coated
• Number of Wedges: 6
• Outer Diameter: 11.1 in
• Pipe Size: 10 in
• Pressure Rating: 350 psi
• Series: Uni-Flange
• Suitable For Use With: Ductile Iron Pipe
• Brand: FORD
• UNSPSC: 40175300
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: UFR1400-DA-10-I
• Standards: ANSI Specified|ASTM A536 Grade 65-45-12|AWWA C111/A21.11|FM Approved|UL Listed
