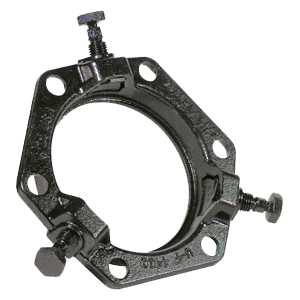

Ford Meter Box UFR1400-D-4 Uni-Flange 4 in Mechanical Joint Wedge Action Restraint Gland

Product Description

The Ford Meter Box UFR1400-D-4 Uni-Flange is designed for ductile iron pipe applications. This four inch mechanical joint wedge action restraint gland uses auto-torque wedge actuating screws to ensure a secure installation. The contoured design of the wedges helps them fit the pipe snugly, eliminating the need for concrete thrust blocks and steel tie rods. The gland, screws, and segments are coated with a black armor guard e-coat for added durability.

• Auto-torque wedge actuating screws ensure proper installation.
• Wedges are contoured to fit the pipe.
• High pressure capabilities rated at 350 PSI.

Product Highlights

This restraint gland provides reliable support for ductile iron pipes with an efficient installation process.

Product Information

Standard Information

• Brand: Ford Meter Box Co.
• Product Type: Wedge Action Restraint Gland

Technical Specifications

• ANSI Standards: ANSI C111, ANSI A21.11
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA C-111, AWWA A-21.11
• Coating: Epoxy
• End Connection 1: Mechanical Joint
• FM Approved: Yes
• Fits Pipe Size: 4 in
• Material: Ductile Iron
• Pressure Class: 350#
• Max Pressure Rating: 350 PSI
• Gasket Type: Standard
• Gland Finish: Epoxy Coat
• Gland Only: Yes
• Manufacturer: Ford Meter Box Co.
• WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
