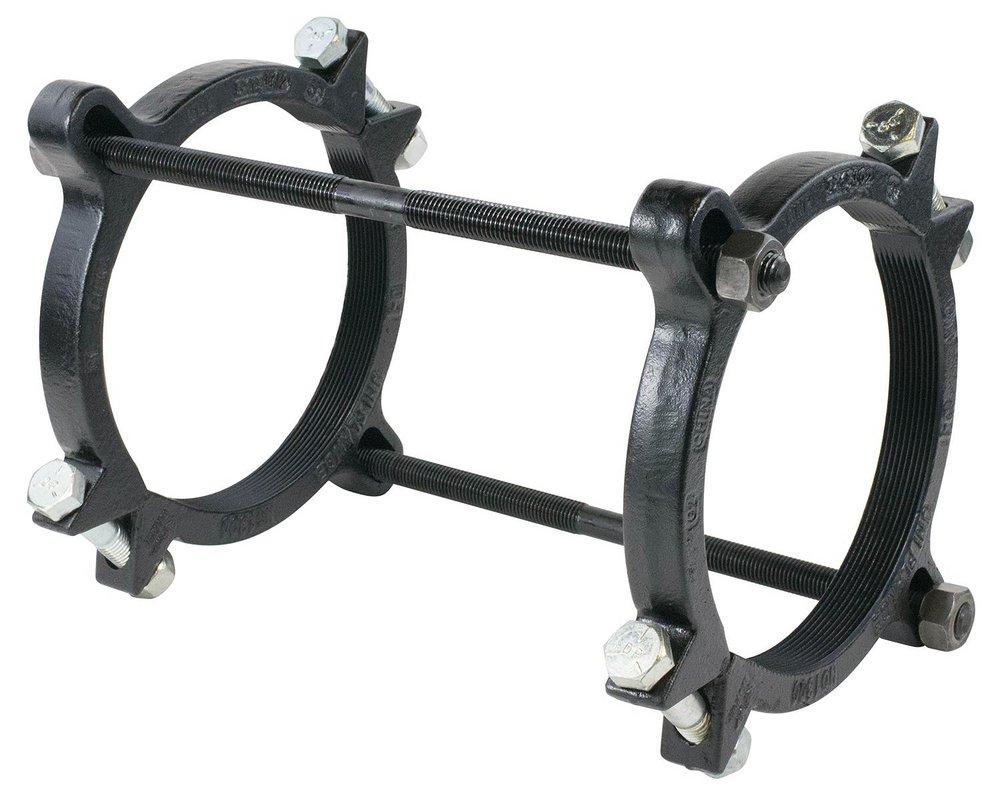

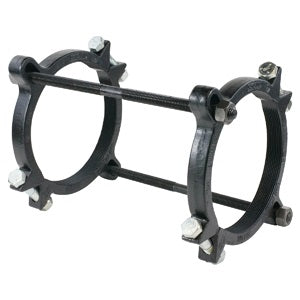

Ford Meter Box UFR1390-C-8-I Uni-Flange® 8 in. Import Casting Restrainer

Product Description

The FORD METER BOX UFR1390-C-8-I Uni-Flange® 8 in. Import Casting Restrainer is suitable for ductile iron and PVC pipe. It features 360° contact and support of the pipe wall. Black Armor guard e-coat epoxy coating is NSF 61 approved. Rated at 250 psi on ductile iron pipe in sizes 4 in - 8 in and 200 psi in size 10 in and 12 in.

• High strength, low alloy steel restraining rods per ANSI / AWWA C111 / A21.11
• Grade 5, zinc plated side clamping nuts and bolts
• 360° contact and support of the pipe wall

Product Highlights

The Uni-Flange® Restrainer ensures secure pipe connections with its robust construction and protective coating.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1390-C-8-I
• Country of Origin: Global

Technical Specifications

• Material: Cast ductile iron per ASTM A536 grade 65-45-12
• Coating: Black Armor guard e-coat epoxy coating - NSF 61 approved
• Application: Suitable for ductile iron and PVC pipe
• Pressure Rating: Rated at 250 psi on ductile iron pipe in sizes 4 in - 8 in and 200 psi in size 10 in and 12 in. Rated at full rated pressure of any class of PVC pipe, minimum 2:1 safety factor
• Item Number: UFR1390-C-8-I
• ANSI: ANSI A21.11, ANSI C111
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA A-21.11, AWWA C-111
• Collection: Uni-Flange
• End Connection 1: Clamp
• End Connection 2: Clamp
• End Connections: Clamp
• FM Approved: No
• Fits Pipe Size: 8 in
• Material Type: PVC
• NSF: NSF 61
• NSF Certified: Yes
• Origin: Global
• Pressure Class: 250#
• Product Type: Joint Restraint
• UL Listed: No
• Box Quantity: 1
