Ford Meter Box UFR1390-C-6-I Uni-Flange® 6 in. Restrainer

Product Description

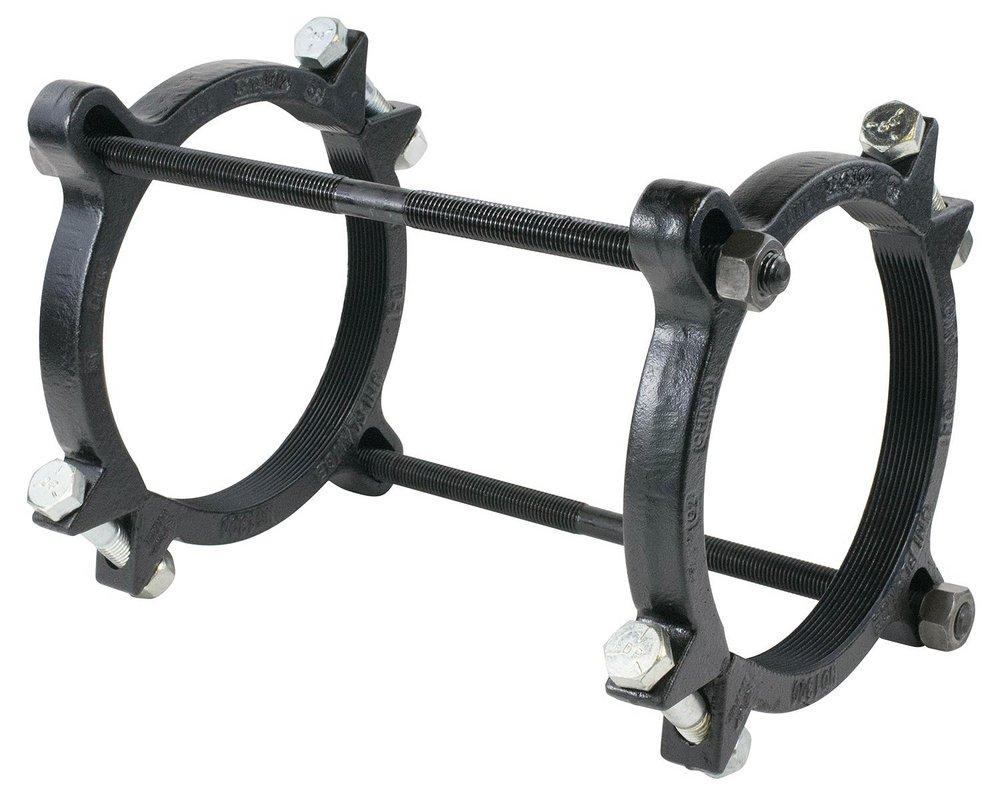

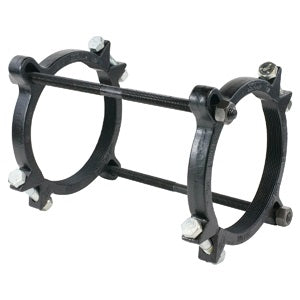

The FORD METER BOX UFR1390-C-6-I Uni-Flange® is a 6 in. restrainer for ductile iron and PVC pipe. The Series 1390 eliminates the need for concrete thrust blocks and offers an alternative to "factory restrained joint" metallic pipes. It consists of two Series 1300 split restraint devices connected with double ended rods.

• 360 deg contact and support of the pipe wall
• Rated at full-rated pressure of any class of PVC pipe, minimum 2:1 safety factor
• Import casting

Product Highlights

The Uni-Flange® Series 1390 offers fast, economical, guaranteed restraint of PVC pipe bell and spigot joints in new or existing installations in any soil condition.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1390-C-6-I
• Country of Origin: Global

Technical Specifications

• ANSI: ANSI A21.11, ANSI C111
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA A-21.11, AWWA C-111
• Application: Ductile Iron Pipe, PVC Pipe
• Coating: Epoxy
• Fits Pipe Size: 6 in
• Material: Ductile Iron
• NSF: NSF 61
• NSF Certified: Yes
• Pressure Class: 250#
• Product Type: Restraint
• Type: Joint Restraint
• Nominal Size: 6 in
• Connection Type: Bolt
• Hardware Material: Steel
• Finish: Black Epoxy Coated
• Fitting/Connector Type: Joint Restraint
• Number of Bolts: 2 Restraint/4 Clamping
• Outer Diameter: 6.9 in
• Pipe Size: 6 in
• Pressure Rating: 200 psi
• Suitable For Use With: PVC and Ductile Iron Pipe Bell Joints
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: UFR1390-C-6-I
• Series: Uni-Flange
