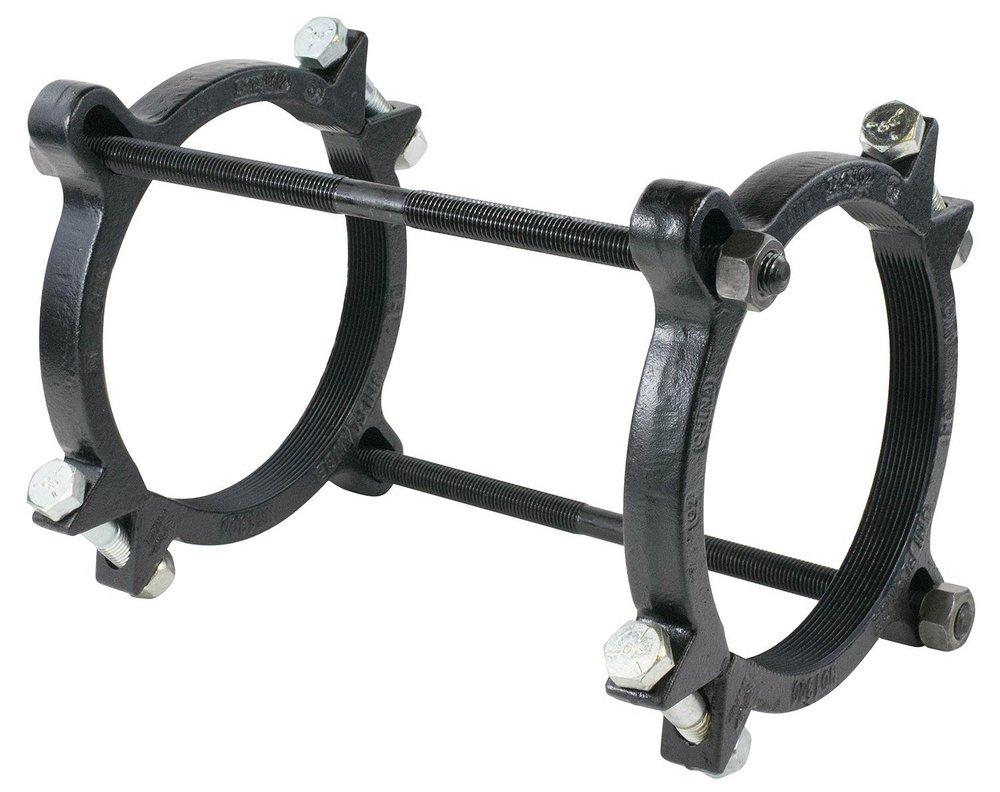

Ford Meter Box UFR1390-C-4-U Uni-Flange® 4 in. Restrainer

Product Description

The FORD METER BOX UFR1390-C-4-U Uni-Flange® is a 4 in. restrainer for ductile iron and PVC pipe. It features 360° contact and support of the pipe wall. It is designed with side clamping bolts and nuts that are grade 5, zinc-plated. Black armor guard e-coat epoxy coating NSF 61 approved.

• Restraining rods included high strength low alloy steel per ANSI / AWWA C111 / A21.11
• Side clamping bolts and nuts - grade 5, zinc-plated
• Cast ductile iron per ASTM A536 grade 65-45-12

Product Highlights

The Uni-Flange® provides full support and restraint for ductile iron and PVC piping systems, ensuring secure and reliable connections.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1390-C-4-U
• Country of Origin: Domestic

Technical Specifications

• Material: Ductile Iron, Low Alloy Steel
• Size: 4 in.
• ANSI: ANSI A21.11, ANSI C111
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA A-21.11, AWWA C-111
• Application: Ductile Iron Pipe, PVC Pipe
• Coating: Epoxy
• Collection: Uni-Flange
• End Connection 1: Bell End
• End Connections: Bell End
• FM Approved: No
• Fits Pipe Size: 4 in
• NSF: NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Pressure Class: 250#
• Product Type: Restraint
• Proposition 65: WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
• UL Listed: No
