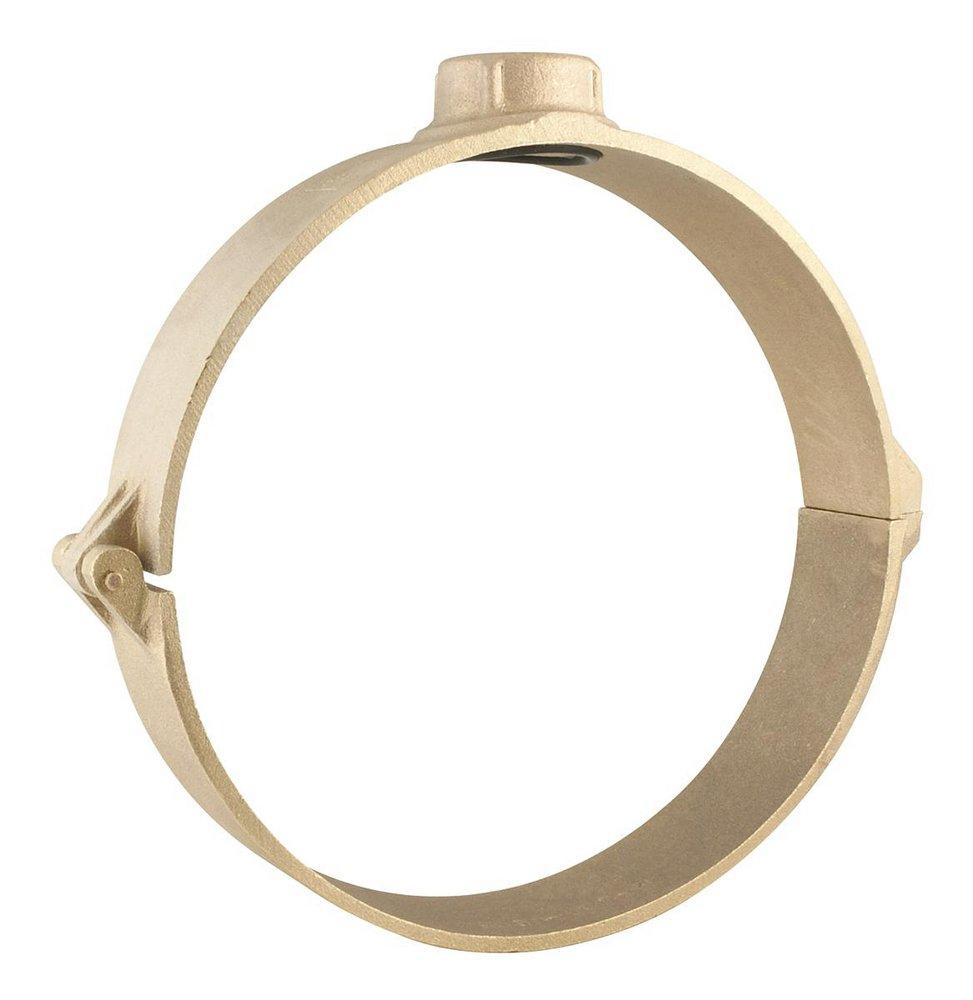

Ford Meter Box S91-604 Hinged Saddle 6 in, 1 in IPT

Product Description

The FORD METER BOX S91-604 hinged saddle fits a 6 inch pipe with a 1 inch IPT connection. This Style S91 A Series saddle is made from certified 85-5-5-5 waterworks brass and machined to rigid specifications. It has ample width and a preformed radius to provide greater distribution of clamping pressures.

• Style A saddle body and strap permanently held together with silicon bronze pin for saddles sized 2 in thru 8 in
• Bolt is 5/16 in slotted hex head silicon bronze for saddles sized 2 in thru 8 in
• All 10 in and 12 in saddles are held together with 1/2 in silicon bronze bolts (3/4 in hex head)

Product Highlights

The hinged design installs as a single unit with no loose parts. It is designed for C900 PVC pipe.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: S91-604

Technical Specifications

• Type: Hinged
• Tap Size: 1 inch
• Nominal Size: 6 inch
• Connection Type: IPT
• Pipe Diameter: 6.9 inch OD
• Material: Brass
• Pressure Rating: 150 psi
• Bolt Material: Silicon Bronze
• Bolt Size: 5/16 in
• Clamp Material: Brass
• Gasket Material: EPDM Rubber
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: S91-604
• Material Standard: AWWA C800|ASTM B62/B584|ASTM D2000 Gasket|UL Listed|UNS NO C83600 85-5-5-5
• Application: For C900 PVC Pipe
• OD: 6.9 in
• Approximate Weight: 3.0000 lb
