Ford Meter Box s71-204 Brass Saddle Clamp 2 in

Product Description

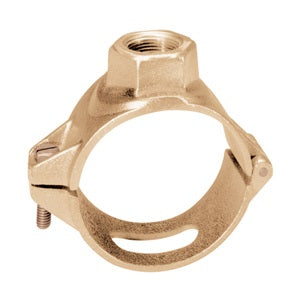

The FORD METER BOX s71-204 is a hinged brass saddle clamp designed for tapping into 2-inch PVC pipe using a 1-inch iron pipe (IP) thread outlet. The saddle features a hinged steel strap that wraps around the pipe and secures firmly, providing a stable platform for drilling and tapping service connections. It is used in water distribution and utility service line work where a branch tap must be made into an existing pressurized or non-pressurized plastic main. Licensed plumbers and water utility crews are the primary installers.

This saddle clamp is suited for residential and light commercial water service applications involving 2-inch PVC pipe with an outside diameter of 2.375 inches. The 1-inch IP tap outlet accommodates standard iron pipe thread fittings used in service line connections. It is commonly installed when adding a new service tap to an existing water main or branch line without a full pipe replacement.

Key Features

• Hinged steel strap design allows easy field installation around existing pipe
• Brass construction on the tap body provides corrosion resistance for potable water service
• Fits PVC pipe with an outside diameter of 2.375 inches (2-inch nominal pipe size)
• 1-inch iron pipe thread tap outlet accepts standard IP threaded service fittings
• Compact and lightweight at 1.20 pounds for easy handling in trench conditions

Compatibility

Designed as an OEM-style saddle tap for 2-inch nominal PVC pipe with an outside diameter of 2.375 inches and a 1-inch iron pipe thread service outlet. No additional model-specific compatibility data was provided in the product input.

Installation Notes

Installation is typically performed by a licensed plumber or water utility technician following local plumbing code and AWWA service connection guidelines. Shut off and depressurize the line before drilling and tapping when working on a live main is not possible. Use a saddle tap drill of the correct size for the 1-inch IP thread before threading in the service fitting. Inspect the strap torque and gasket seat after installation to confirm a leak-free seal.

Technical Specifications

• Pipe Size: 2 inches nominal
• Compatible Pipe Outside Diameter: 2.375 inches
• Tap Thread Size: 1 inch Iron Pipe (IP)
• Body Material: Brass
• Strap Type: Hinged Steel
• Weight: 1.20 pounds
• Box Quantity: 6

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: s71-204
