Ford Meter Box L44-77-Q-NL 2 in. Quick Joint Brass 90 Degree Elbow Coupling

Product Description

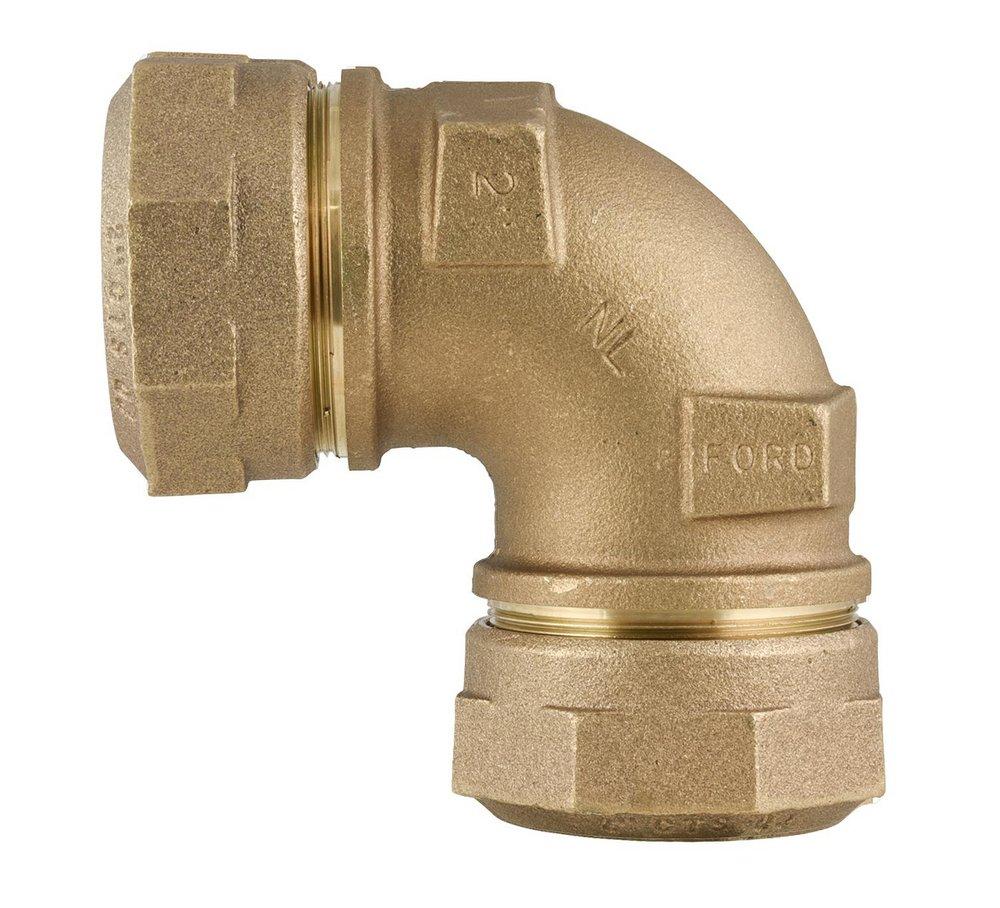

The FORD METER BOX L44-77-Q-NL is a 2 in. Quick Joint Brass 90 Degree Elbow Coupling. It is designed for use with plastic pipe or tubing, insert stiffeners are recommended. This lead-free elbow coupling features quick joint connections and is made of brass. Compliant with AWWA C800 and NSF/ANSI standards.

• Features the letters “NL” cast into the main body for lead-free identification
• Equipped with a stainless steel gripper
• Molded BUNA-N spring tip gasket provides hydraulic seal

Product Highlights

This 2 inch brass elbow coupling features quick joint connections and is compliant with industry standards. Ideal for use in potable water applications.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: L44-77-Q-NL

Technical Specifications

• Material: Brass
• Connection Type: Quick Joint x Quick Joint
• Length: 2-13/16 inch
• Standards: AWWA C800, NSF/ANSI
• Type: Lead-Free
• ANSI: ANSI 61, ANSI 372
• AWWA: AWWA C-800
• End Connection 1: Quick Joint
• End Connection 2: Quick Joint
• Fitting Size 1: 2 in
• Fitting Size 2: 2 in
• Fitting Sizes: 2 in
