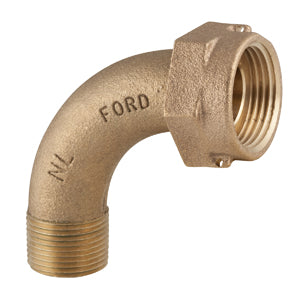

Ford Meter Box l38-23-nl 90 Degree Elbow Fitting

Product Description

The FORD METER BOX l38-23-nl is a no-lead, 90-degree elbow fitting designed for water meter connections in residential and commercial plumbing installations. It connects a 5/8 x 3/4 inch meter swivel nut on one end to a 3/4 inch male iron pipe thread (MIPT) on the other, making it a direct interface between a water meter and the service line. The no-lead construction meets federal and state drinking water material requirements. Licensed plumbers and water utility contractors specify this fitting where code mandates lead-free materials in potable water systems.

This elbow fitting is used in water meter setting applications where a 90-degree change of direction is required between the meter outlet and the downstream piping. Typical installations include residential water service entries and light commercial meter sets. The 3/4 inch MIPT outlet makes it compatible with standard threaded piping and fittings commonly found in water service work.

Key Features

• No-lead construction compliant with potable water regulations
• 90-degree elbow configuration for directional changes at the meter
• 5/8 x 3/4 inch meter swivel nut inlet for direct meter connection
• 3/4 inch male iron pipe thread outlet for standard threaded pipe connections
• Compact form factor suited for tight meter pit installations

Compatibility

Designed as an OEM-style replacement fitting for water meter connection applications requiring a 5/8 x 3/4 inch swivel nut inlet and a 3/4 inch male iron pipe thread outlet in no-lead compliant installations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable IPC requirements. Shut off the water service at the curb stop before disconnecting any meter fittings. Use appropriate pipe thread sealant rated for potable water on the MIPT connection. Do not over-tighten the swivel nut, as this can damage the meter gasket or swivel seat.

Technical Specifications

• Configuration: 90-Degree Elbow
• Inlet Connection: 5/8 x 3/4 inch Meter Swivel Nut
• Outlet Connection: 3/4 inch Male Iron Pipe Thread
• Lead Content: No Lead
• Weight: 1.0 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: l38-23-nl
