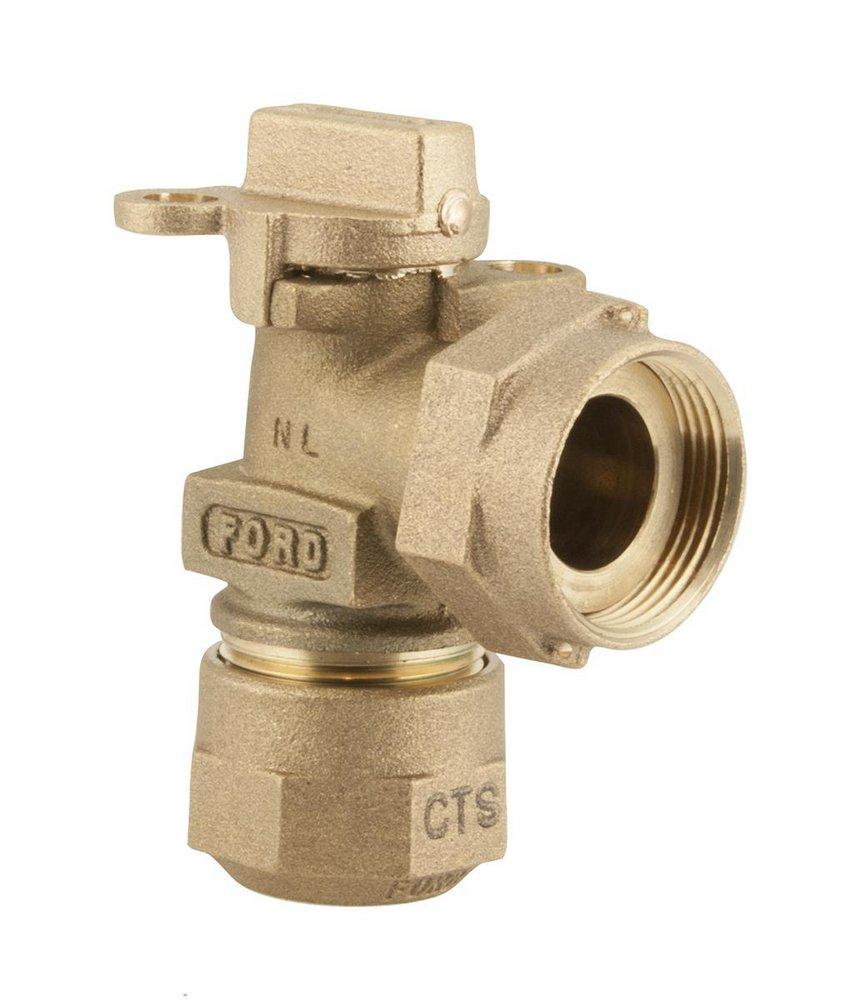

Ford Meter Box KV43-444W-Q-NL 1 x 1-19/16 in. CTS x Meter Angle Supply Stop Key Valve

Product Description

The FORD METER BOX KV43-444W-Q-NL is a 1 x 1-19/16 in. CTS x Meter Angle Supply Stop Key Valve. The product has the letters ",NL," cast into the main body for lead-free identification. It meets 100 PSI working pressure requirements of AWWA standard C800. All brass that comes in contact with potable water conforms to AWWA standard C800.

• Lead-free identification
• Certified to NSF/ANSI standard 61
• Certified to NSF/ANSI standard 372 where applicable

Product Highlights

This key valve is certified to NSF/ANSI standard 61 and NSF/ANSI standard 372 where applicable. It features a padlock wing for locking valve in closed position.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: KV43-444W-Q-NL

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM B-584, ASTM B-62
• AWWA: AWWA C-800
• End Connection 1: Quick Joint
• End Connection 2: Meter Swivel Nut
• End Connections: Quick Joint x Meter Swivel Nut
• Fitting Type: Stop
• Inlet Service Size: 1
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 1-11/16
• Material: Brass, Rubber
• Material Type: EPDM
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• OutletMeter Size: 1
• Pressure - Maximum: 100 psi
• Valve Size: 1 in
