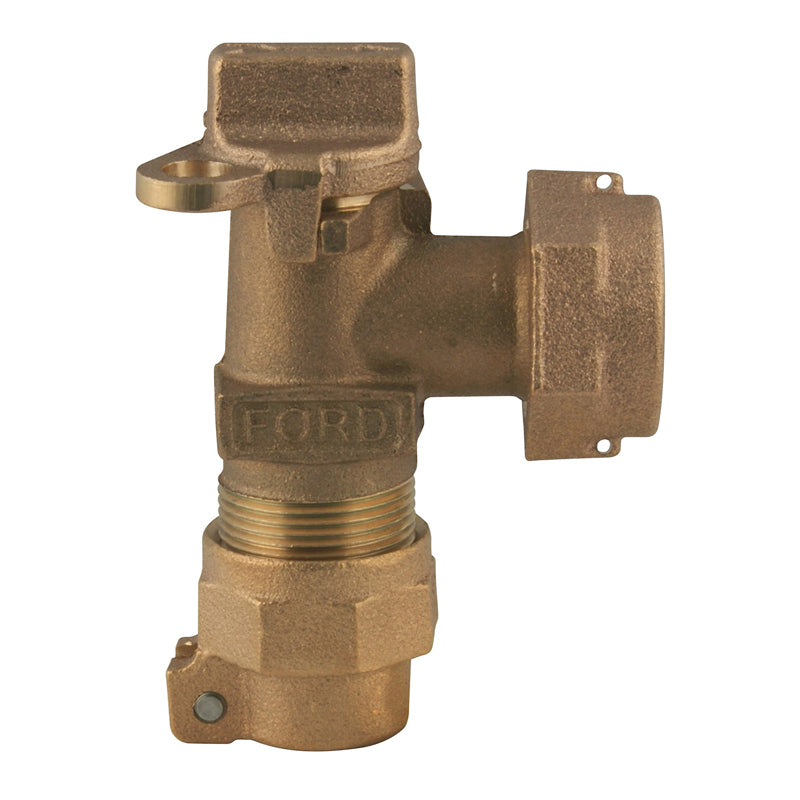

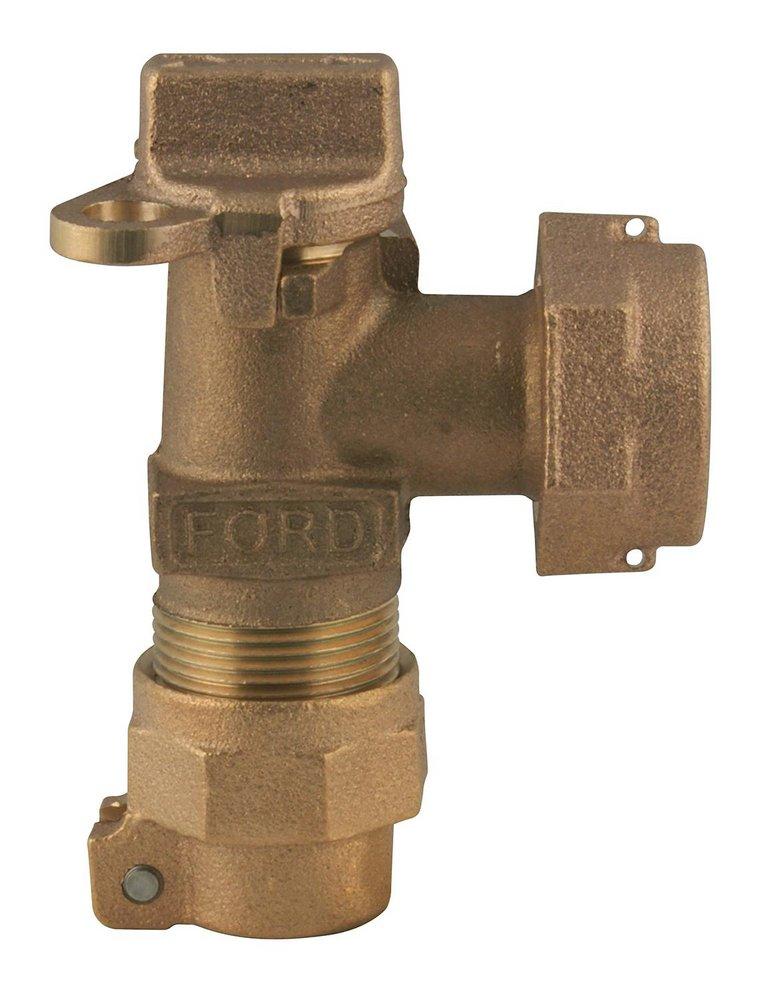

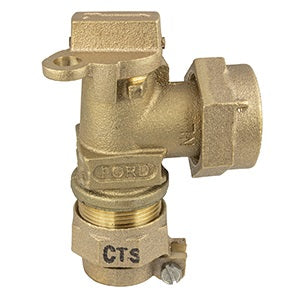

Ford Meter Box KV43-444W-NL 1 in. Pack Joint x Meter Swivel Nut Brass Meter Angle Key Valve

Product Description

The FORD METER BOX KV43-444W-NL is a 1 in. Pack Joint x Meter Swivel Nut Brass Meter Angle Key Valve. It features a Padlock Wing for locking the valve in a closed position. Ford recommends using insert stiffeners with plastic pipe or tubing. This valve is Lead Law Compliant and requires certification.

• Padlock Wing for locking the valve in a closed position
• Ford recommends using insert stiffeners with plastic pipe or tubing
• Lead Law Compliant

Product Highlights

This angle key meter valve is ideal for use in water service lines. It is watertight in either direction at pressures up to 300 psi.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: KV43-444W-NL

Technical Specifications

• ASTM: ASTM B62, ASTM B584
• AWWA: AWWA C800
• End Connection 1: Pack Joint
• End Connection 2: Meter Swivel Nut
• End Connections: Pack Joint x Meter Swivel Nut
• Inlet Service Size: 1
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 1-15/16
• Material: Brass
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• OutletMeter Size: 1
• Pressure - Maximum: 100 psi
• Pressure Class: 100#
• Valve Size: 1 in
• Type: Angle Meter
• Nominal Size: 1 in
• End Style: CTS Pack Joint x Meter Swivel Nut
• Body Material: Brass
• Inlet to Outlet Length: 1-15/16 in
• Meter Size: 1 in
• Pressure Rating: 100 psi
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: KV43-444W-NL
• Connections: CTS PJ/MTR NUT
• Size: 1 in
