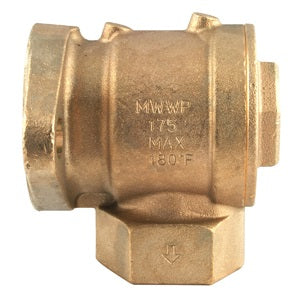

Ford Meter Box hhfa31-777-nl 2 in Angle Dual Check Valve

Product Description

The FORD METER BOX hhfa31-777-nl is a 2-inch angle dual check valve designed for potable water meter installations. It is a no-lead-compliant fitting that connects a 1-1/2-inch to 2-inch meter flange on one end to a 2-inch female iron pipe thread on the other. The dual check valve configuration provides backflow prevention in two stages, protecting the supply side from reverse flow. This fitting is installed by licensed plumbers and waterworks contractors working on residential and light commercial meter sets.

This valve is suited for angle-pattern meter installations where a direct in-line configuration is not practical. The meter flange inlet allows direct connection to standard water meter flanges, making it a common component in meter pit and vault assemblies. The no-lead construction meets federal and applicable state requirements for fixtures and fittings used in potable water systems. It is appropriate for new construction meter sets and replacement service work.

Key Features

• No-lead construction meets federal safe drinking water requirements for potable water use
• Angle-pattern body accommodates meter pit and vault configurations where space or alignment requires an offset connection
• Dual check valve provides two-stage backflow prevention within a single compact body
• Meter flange inlet is sized for direct connection to 1-1/2-inch to 2-inch standard water meters
• 2-inch female iron pipe thread outlet connects to standard service line configurations

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch angle meter assemblies using a meter flange inlet and female iron pipe thread outlet in potable water service applications.

Installation Notes

Installation should be performed by a licensed plumber or waterworks contractor in accordance with local plumbing codes and IPC requirements. Shut off the water service and relieve system pressure before removing or installing this valve. Ensure thread connections are properly sealed with an approved thread sealant rated for potable water service. Verify that the meter flange bolt pattern and gasket dimensions match the meter being connected before final assembly.

Technical Specifications

• Size: 2 inches
• Inlet Connection: 1-1/2 to 2 inches Meter Flange
• Outlet Connection: 2 inches Female Iron Pipe Thread
• Valve Pattern: Angle
• Check Valve Stages: Dual
• Lead Compliance: No Lead
• Weight: 8.11 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: hhfa31-777-nl
