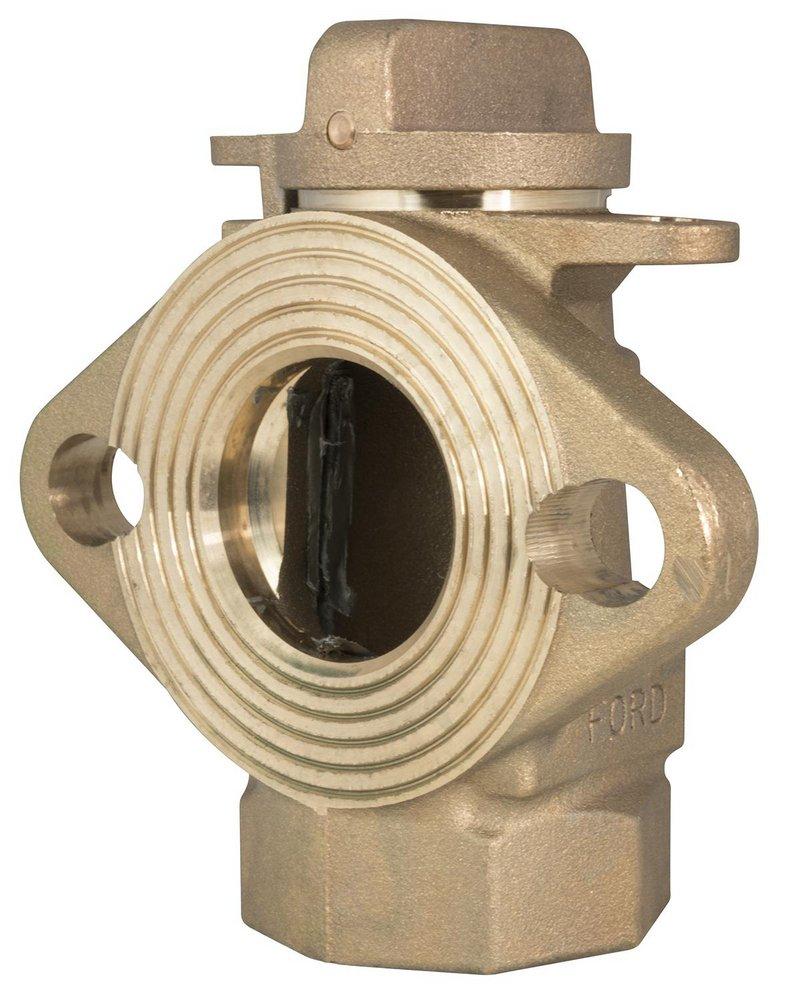

Ford Meter Box FV13-777W-NL Angle Key Valve 2 in

Product Description

The FORD METER BOX FV13-777W-NL 2 in. FIPS x Meter Flanged Cast Brass Angle Key Valve. It features a padlock wing for locking the valve in closed position. Slotted holes are standard on 2 in flanged angle meter valves, allowing 1-1/2 in flange meter connection. It is lead law compliant.

• Requires Certification
• Lead Law Compliant
• Padlock wing for locking the valve in closed position

Product Highlights

The FORD METER BOX Angle Key Valve is designed for use with 2 inch nominal pipe sizes.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: FV13-777W-NL
• Country of Origin: United States

Technical Specifications

• ANSI: ANSI 61, ANSI 372
• AWWA: AWWA C800
• End Connection 1: FPT
• End Connection 2: Meter Flanged
• End Connections: FPT x Meter Flanged
• Inlet Service Size: 2
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Cast Brass
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• OutletMeter Size: 2
• Pressure - Maximum: 80 psi
• Valve Size: 2 in
• Type: Angle Meter
• Nominal Size: 2 in
• End Style: FNPT x Meter Flange
• Body Material: Brass
• End Size: 2 in
• Inlet to Outlet Length: 1-1/2 in
• Pressure Rating: 80 psi
• Series: FV13
• Softgoods Material: Buna-N O-Ring
• Trim Material: Molded EPDM Seat
• Brand: FORD
• UNSPSC: 40141600
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: FV13-777W-NL
• MPN: FV13-777W-NL
• Compatible Brand: Ford
• Model: FV13-777W-NL
• Compatible Model: FV13-777W-NL
• UPC: NA
• Country of Origin: United States
