Ford Meter Box FTSS-1780-8 16in Tapping Sleeve/8in Outlet

Product Description

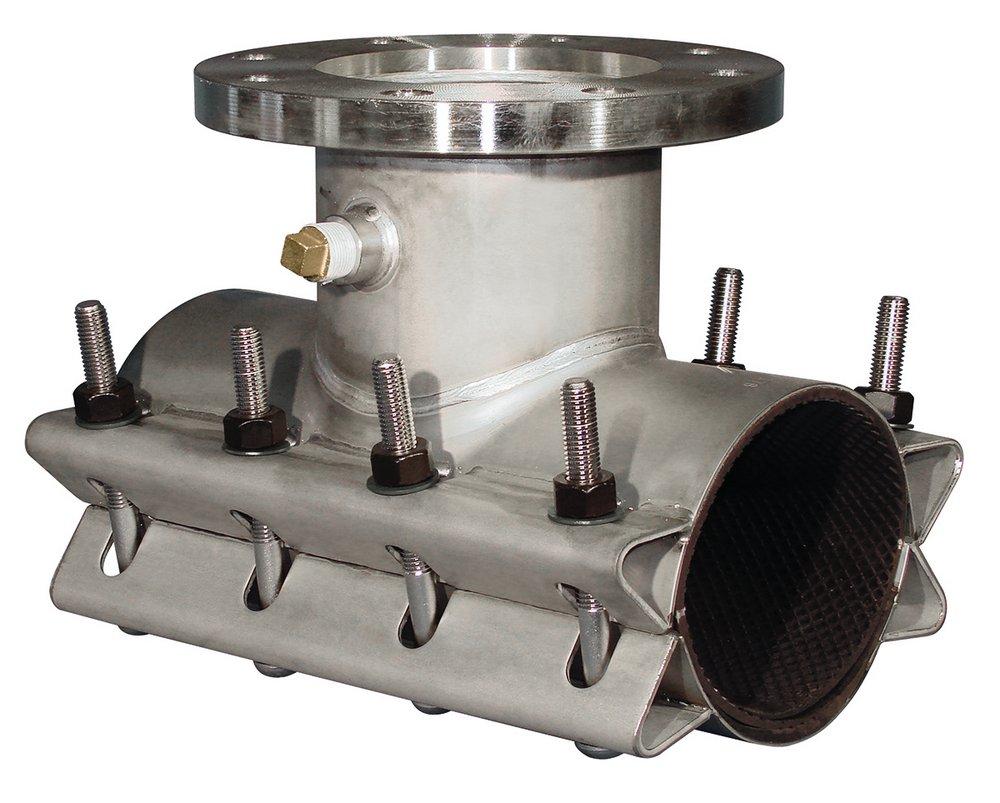

The FORD METER BOX FTSS-1780-8 16IN Tapping Sleeve/8IN Outlet RG=17.32-17.80. FORD FTSS Tapping Sleeves feature a heavy gauge stainless steel body with removable bolts. A gridded gasket surrounds the pipe and cushions the pipe during the tap, helping prevent pipe breaks. The flange outlet is welded inside and out and chemically passivated for corrosion protection.

• (12) Stainless Steel Removable Bolts
• 360 deg Gasket
• 8 in Stainless Steel Flange

Product Highlights

Heavy gauge stainless steel body with removable bolts. Chemically passivated for maximum corrosion protection.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: FTSS-1780-8
• Country of Origin: Global

Technical Specifications

• OD Range: Range: 17.32 - 17.80
• Torque Specifications: 110 ft. lbs.
• ANSI: ANSI 150, ANSI 61
• ASTM: ASTM A-36, ASTM D-2000
• AWWA: AWWA C-207, AWWA C-223, AWWA C-228
• Collection: Style FTSS
• End Connection 1: Flanged
• End Connections: Flanged
• FM Approved: No
• Fits Pipe Size: 16 in
• IAPMO Listed: No
• MSS: MSS SP-60
• Material: Stainless Steel
• Material Type: 304
• NSF: NSF 61
• NSF Certified: Yes
• Range (in): 17.40 in - 17.80 in
• Tap Size: 8
• UL Listed: No
• Type: Tap Sleeve
• Nominal Size: 16 in
• Connection Type: 8 in Flanged
• Bolt Material: 304 Stainless Steel
• Bolt Size: 3/4 in
• Clamp Material: Stainless Steel
• Gasket Material: Buna-N Rubber
• Pressure Rating: 200 psi
• Schedule Rating: SCH 5
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: FTSS-1780-8
