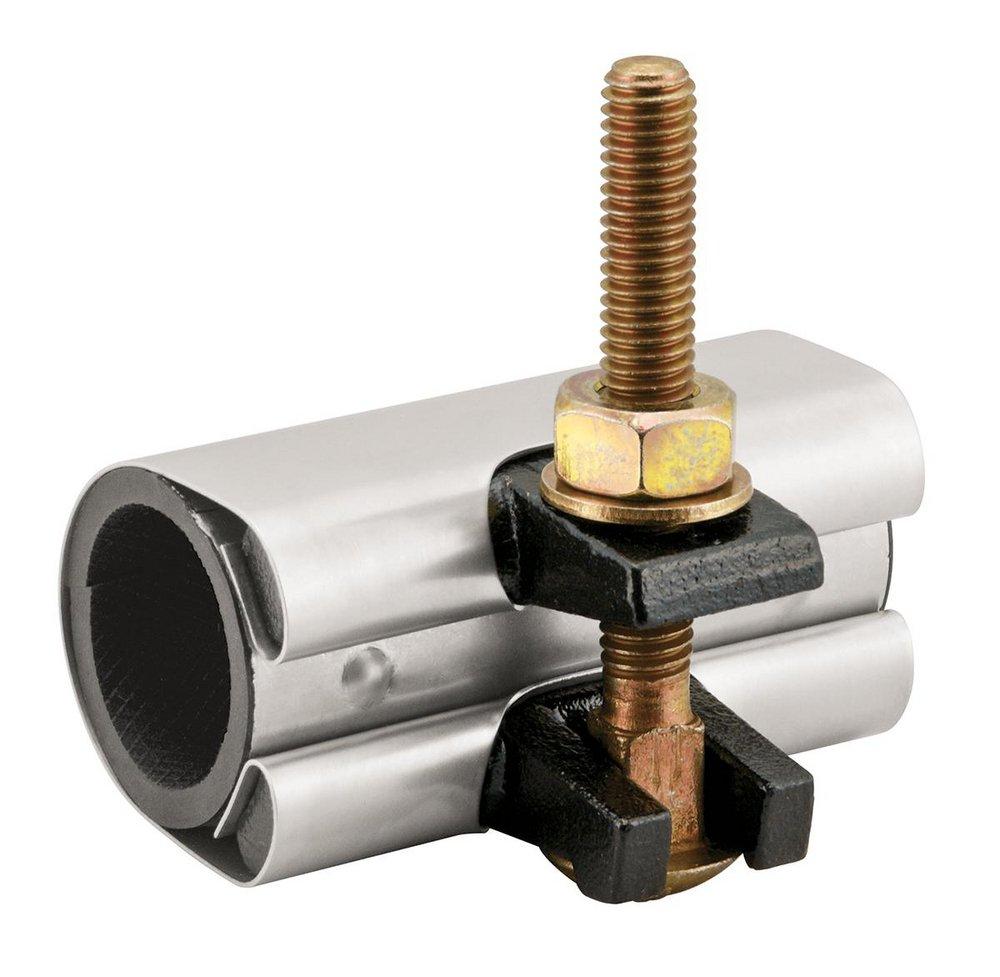

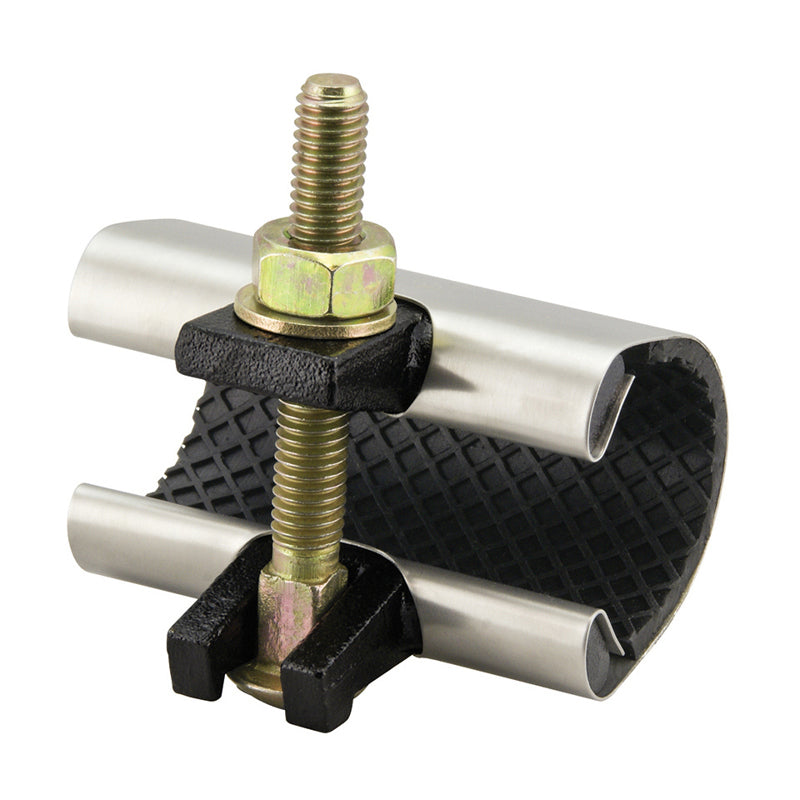

Ford Meter Box FSC-190-3 Snap Clamp 1-1/2 in, 3 in Long

Product Description

The FORD METER BOX FSC-190-3 is a 1-1/2 inch snap clamp with a 3 inch length. Ford wrap clamps offer leak repair with 360 degree gasket coverage. Features a drop-in bolt design that allows bolts to remain attached. Full wrap gaskets have a light-grid design and extend lug to lug.

• Offers leak repair features
• Provides 360 degree gasket coverage
• Drop-in bolt design allows bolts to remain attached

Product Highlights

The FSC-190-3 snap clamp is ideal for pipe repair, providing a secure and full coverage seal.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: FSC-190-3

Technical Specifications

• ASTM: ASTM A-536
• Coating: Black Armorguard E-Coat, Electrogalvanized
• Collection: Style FSC
• Fits Pipe Size: 1-1/2 in
• Length: 3 in
• Material: Stainless Steel
• Material Type: 304, NBR
• Product Type: Wrap Clamp
• Range (in): 1.90 in
• UL Listed: Yes
• Type: Band
• Pipe Size: 1-1/2 in
• Series: FSC
• Outside Diameter: 1.9 in
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: FSC-190-3R2
• Material Detail: Ductile Iron Lug With Armorguard Epoxy Coated, Electro-Galvanized Carbon Steel flat washer, (1) 3/8 x 3-1/2 in Electro-Galvanized Carbon Steel Bolt and Heavy Hex Nut With Di-Chromate Seal, 304 Stainless Steel Band, 304 Stainless Steel Dual-Armor and EPDM Armored Full-Wrap Gasket
• Configuration: Snap
• Size: 1-1/2 in
• Nominal Size: 1-1/2 inch
• Pipe Outer Diameter: 1.90 inch
