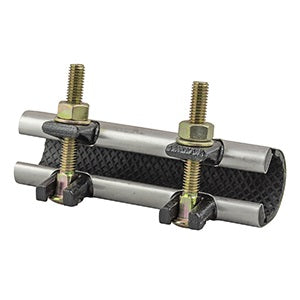

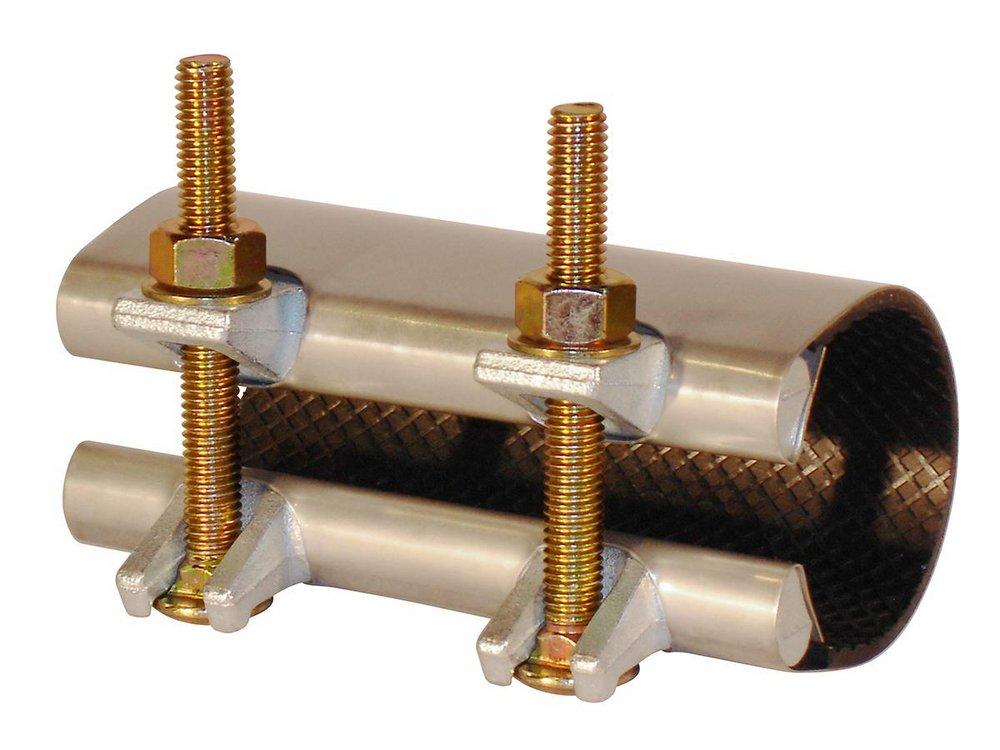

Ford Meter Box fsc-166-6 Snap Clamp 1-1/4 x 6 in. 1.66 in. OD

Product Description

The FORD METER BOX FSC-166-6 snap clamp offers an economical way to repair pinholes and small leaks that do not require a full 360° gasket seal. Its gridded gasket design and cushion lugs make it ideal for older pitted pipes. Features a drop-in bolt design, heavy-grid gaskets, and extends lug to lug.

• Ideal for older pitted pipe
• Drop-in bolt design
• Economical way to repair pinholes and small leaks

Product Highlights

The FORD snap clamp is designed for the economical repair of water pipe small leaks.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: FSC-166-6

Technical Specifications

• Outside Diameter: 1.66 in
• Type: Band
• Pipe Size: 1-1/4 in
• Length: 6 in
• Material: Stainless Steel
• Series: FSC
• Brand: FORD
• UNSPSC: 31162906
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: FSC-166-6
• Ductile Iron Lug: Electro-Galvanized Carbon Steel flat washer, (2) 3/8 x 3-1/2 in Electro-Galvanized Carbon Steel Bolts and Heavy Hex Nuts With Di-Chromate Seal, 304 Stainless Steel Band and Grid Design Buna-N Gasket
• ASTM A536 Lug: ASTM A240 Band|UL Listed|PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Box Quantity: 12
• Torque Specifications: 25 ft. lbs.
