Ford Meter Box FSC-132-3 Snap Clamp 1 x 3 in.

Product Description

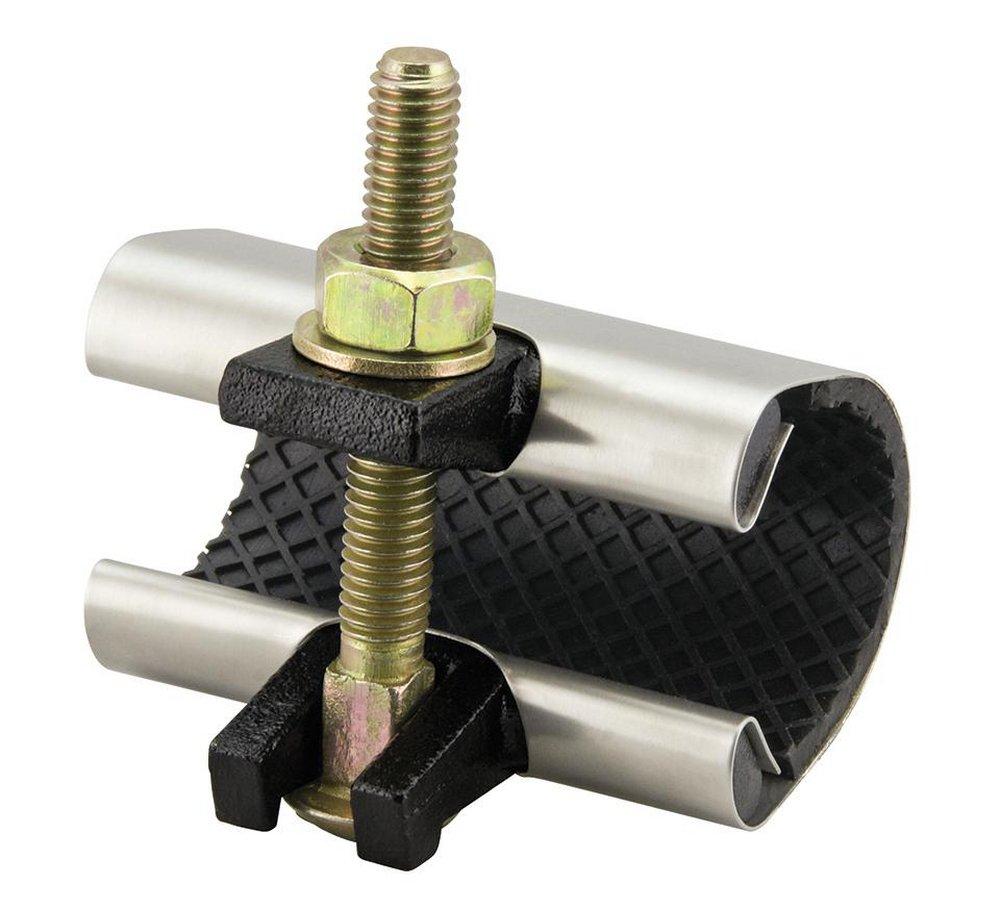

The FORD METER BOX FSC-132-3 snap clamp offers an economical way to repair pinholes and small leaks that do not require a full 360-degree gasket seal. Its gridded gasket design and cushion lugs are ideal for older pitted pipe. The drop-in bolt design allows bolts to remain attached.

• Gridded gasket design
• Cushion lugs
• Drop-in bolt design
• Economical repair solution

Product Highlights

The FORD METER BOX snap clamp is designed for the economical repair of water pipe small leaks.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: FSC-132-3

Technical Specifications

• Torque Specifications: 25 ft. lbs.
• ASTM: ASTM A-536
• Application: Repair Clamps
• Fits Pipe Size: 1 in
• Length: 3 in
• Material: Stainless Steel
• Material Type: NBR
• Item Name: Snap Clamp
• Series: FSC
• Type: Band
• Pipe Size: 1 in
• Outside Diameter: 1.32 in
• Brand: FORD
• UNSPSC: 31162906
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: FSC-132-3
• Ductile Iron Lug: Electro-Galvanized Carbon Steel flat washer, (1) 3/8 x 3-1/2 in Electro-Galvanized Carbon Steel Bolt and Heavy Hex Nut With Di-Chromate Seal, 304 Stainless Steel Band and Grid Design Buna-N Gasket
