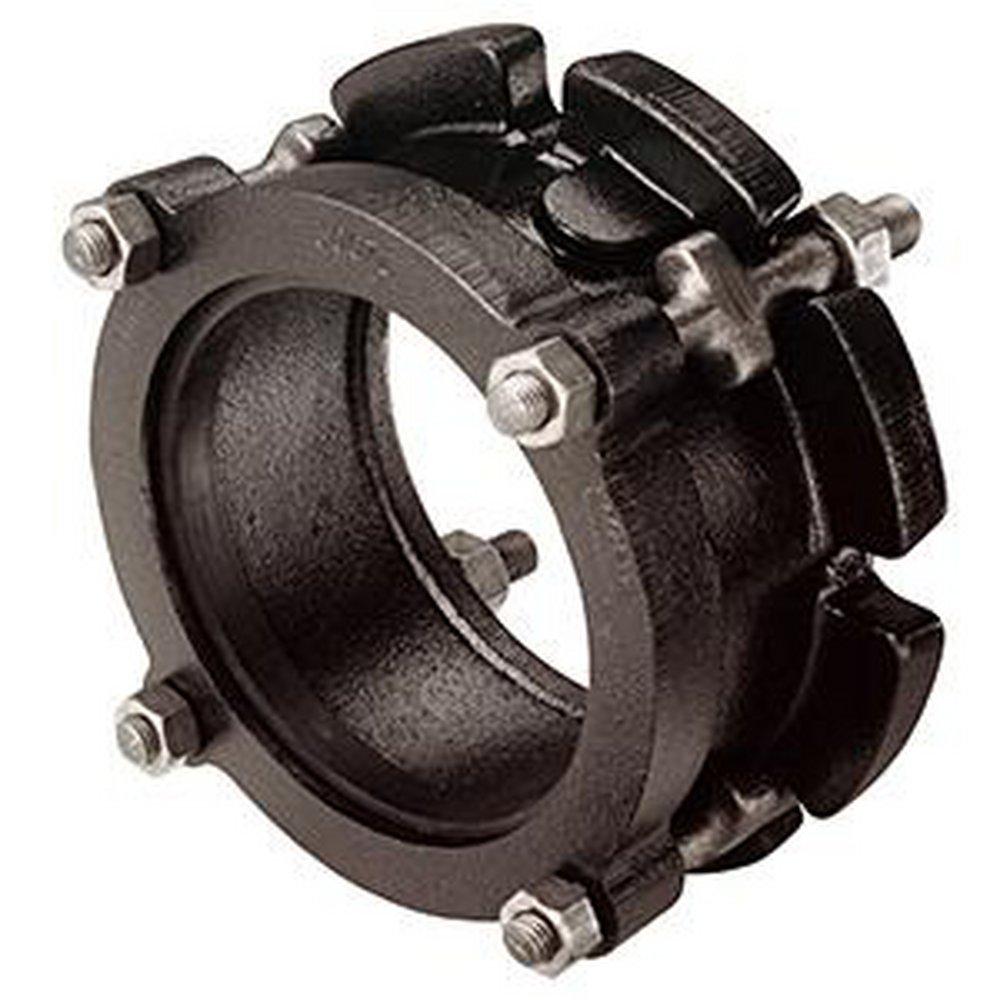

Ford Meter Box FFCA-712 6in Flanged Coupling Adapter

Product Description

The FORD METER BOX FFCA-712 is a 6in flanged coupling adapter designed for connecting pipes. It joins plain end pipe to flanged fittings and is designed without pipe stops, allowing it to slide completely over the pipe for clearance. It features a ductile iron body and end ring, SBR gaskets, and high-strength low alloy steel bolts and nuts.

• Used to join plain end pipe to flanged fittings
• Designed without pipe stops and can slide completely over the pipe to allow for clearance
• Furnished with HSLA tee-head bolts and/or ductile iron cross bolts

Product Highlights

This flanged coupling adapter features a shop-coated ductile iron construction and is certified to ANSI/NSF 61.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: FFCA-712
• Country of Origin: US

Technical Specifications

• Item Number: FFCA-712
• ANSI: ANSI A21.10, ANSI B16.1 Class 125, ANSI C110
• ASTM: ASTM A-536 Grade 65-45-12, ASTM D-2000
• Application: For joining plain end pipe to flanged fittings
• Coating: Shop Coated
• Collection: Style FFCA
• End Connection 1: Flanged
• End Connection 2: Flanged
• End Connections: Flanged
• FM Approved: No
• Fitting Size 1: 6
• Fitting Size 2: 6
• Fitting Sizes: 6 in
• Fitting Type: Coupling Adapter, Straight
• Length: 4-1/8 in
• Material: Ductile Iron, Rubber
• Material Type: Buna-N
• NSF: NSF 61
• NSF Certified: Yes
• Range (in): 6.81 in - 7.12 in
• UL Listed: Yes
• Brand: FORD
• MPN: FFCA-712
• Category: Business & Industrial
• Type: Fittings & Adapters
• Nominal Size: 6 in
• End Style: Flange
• Finish: Shop Coated
• Domestic/Import: Import
• Method of Manufacture: Cast
• Pressure Rating: 175 psi
• Series: FFCA
• UNSPSC: 40170000
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: FFCA-712
• Additional Features: Ductile Iron Black End Ring, (4) 3/4 x 5/8 x 7-3/8 in Low Alloy Steel Cross Bolts and (4) 3/4 x 3-1/2 in Low Alloy Steel T-Bolts
• Standards: ASTM A536 65-45-12 Body/End Ring|ASTM D2000 90M 4AA 810 Gasket|ASTM D2000 Flange O-Ring|ANSI/AWWA C110 A21.10-86|ANSI B16.1 Class 125 Flange|AWWA C111/ASTM A536 Bolts and Nuts|NSF 61|UL Listed
