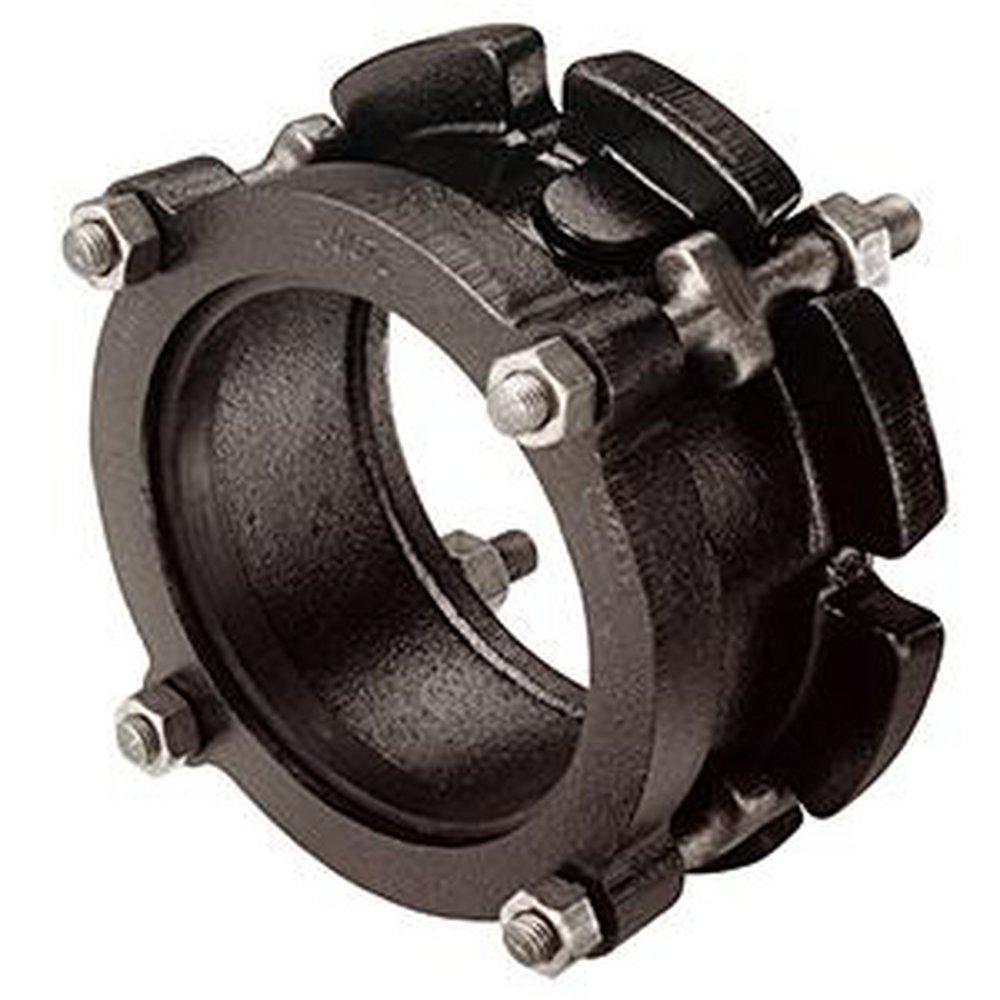

Ford Meter Box FFCA-491 Style FFCA 4 in. Flanged Shop Coated Ductile Iron Coupling Adapter

Product Description

The FORD METER BOX FFCA-491 is a Style FFCA 4 in. Flanged Shop Coated Ductile Iron Coupling Adapter. It features a ductile iron body and end ring per ASTM A536 65-45-12. Designed with gaskets made from SBR per ASTM D2000, with optional NBR (Buna-N) available upon request. Suitable for use with water.

• Ductile iron construction
• Flanged connection
• Shop coated finish

Product Highlights

The FORD METER BOX FFCA-491 coupling adapter ensures a secure and reliable connection for various piping systems.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: FFCA-491
• Country of Origin: United States

Technical Specifications

• Gaskets: SBR per ASTM D2000. Optional NBR (Buna-N) upon request
• Bolts and nuts: high strength low alloy steel per AWWA C-111
• Body and end ring: ductile iron per ASTM A536 65-45-12
• Certification: Certified to ANSI/NSF 61
• Finish: shop coat
• Rated working pressure: 175 psi
• Flange O-Ring: NBR (Buna-N) per ASTM D2000
• Flange Drilling: per ANSI/AWWA C110/A21.10-86 and per ANSI B16.1 Class 125
• OD Range: Range: 4.70 - 4.91
• ANSI: ANSI A21.10, ANSI B16.1 Class 125, ANSI C110
• ASTM: ASTM A-536 Grade 65-45-12, ASTM D-2000
• Application: Pipe Fitting, Plain End Pipe
• Coating: Shop Coated
• Collection: Style FFCA
• End Connection 1: Flanged
• End Connection 2: Flanged
• End Connections: Flanged
• FM Approved: No
• Fitting Size 1: 4
• Fitting Size 2: 4
• Fitting Sizes: 4 in
• Fitting Type: Coupling Adapter, Straight
• Length: 3-1/2
• Material: Ductile Iron, Rubber
• Material Type: Buna-N
• NSF: NSF 61
• NSF Certified: Yes
• Range (in): 4.7 in - 4.91 in
• UL Listed: Yes
• MPN: FFCA-491
• Brand: Ford
