Ford Meter Box FB500-7-NL Ball Corp Valve 2 in

Product Description

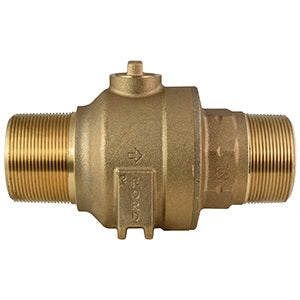

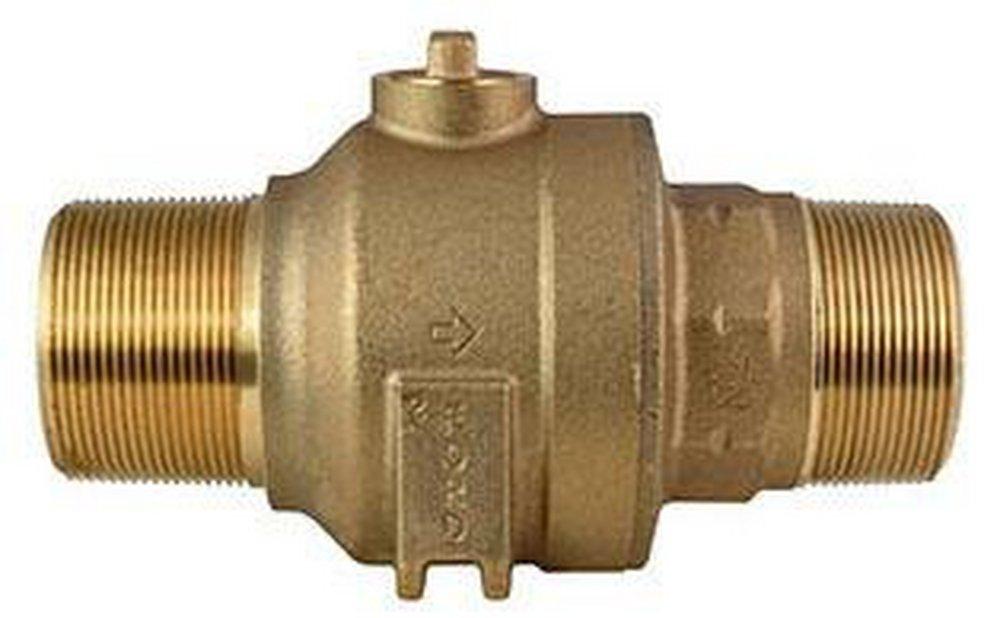

The FORD METER BOX FB500-7-NL is a 2-inch ball corporation stop valve with MPT connections. Designed to conform with AWWA standards, this valve is individually inspected and tested for leaks. It features integral ends secured with adhesive to prevent unintentional disassembly. All brass that comes in contact with potable water conforms to AWWA standard C800 (ASTM B584, UNS C89833).

• Lead Law Compliant
• Ends are integral or secured with adhesive to prevent unintentional disassembly
• Solid one-piece tee head and stem

Product Highlights

The Ford Meter Box FB500-7-NL ball valve is ideal for waterworks providers, offering reliability and compliance with industry standards.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: FB500-7-NL
• Country of Origin: United States

Technical Specifications

• ASTM: ASTM B62, ASTM B584
• AWWA: AWWA C800
• End Connection 1: MPT
• End Connection 2: MPT
• End Connections: MPT
• Inlet Service Size: 2
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 7-5/16
• Material: Brass
• Material Type: EPDM
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• OutletMeter Size: 2
• Pressure - Maximum: 300 psi
• Pressure Class: 300#
• Valve Size: 2 in
• Series: FB500
• Type: Ball
• Nominal Size: 2 in
• End Style: MNPT
• Body Material: Brass
• Inlet to Outlet Length: 7-5/16 in
• Media: Water
• Pressure Rating: 300 psi
• Softgoods Material: EPDM O-Ring
• Brand: FORD
• UNSPSC: 40141600
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: FB500-7-NL
• Standards: ASTM B62/B584|AWWA C800|ANSI/NSF 61/372|UNS C89833/C83600/85-5-5-5
• Body Outlet Threads: 2" MIP
• Inlet Size: 2"
• Outlet Size: 2"
• Valve Length: 7-5/16"
