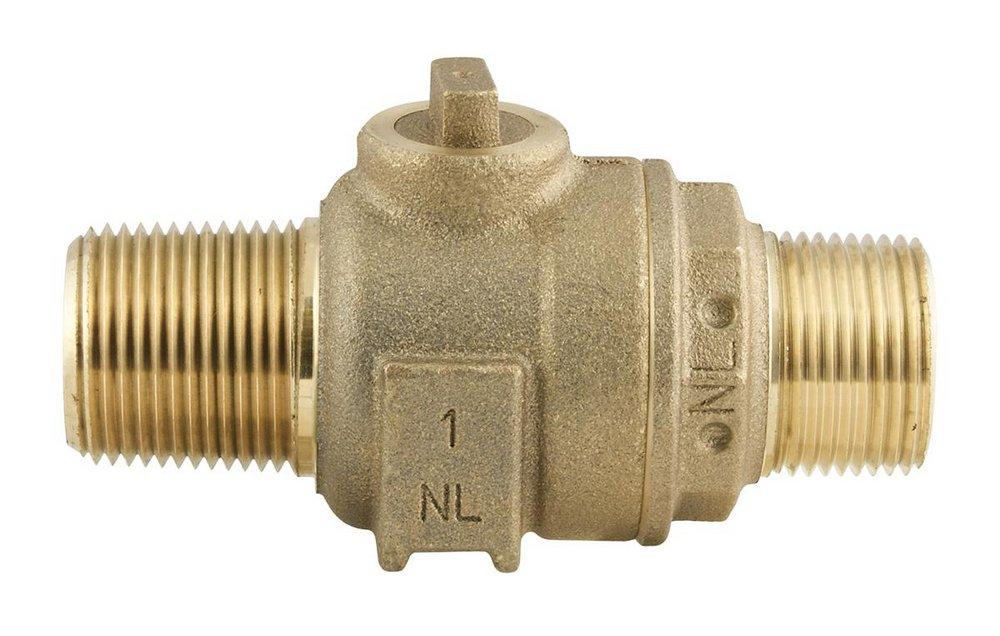

Ford Meter Box FB500-4-NL Ball Corp Valve 1 in

Product Description

The FORD METER BOX FB500-4-NL is a ball corporation stop with 1 in nominal size and MNPT end style. Designed and manufactured to conform with AWWA Standard C800. Features ends that are integral or secured with adhesive to prevent unintentional disassembly. All stops are individually inspected and tested for leaks with air pressure.

• Lead Law Compliant
• Compatible with tapping machines of current design
• 300 psi Pressure

Product Highlights

The FORD FB500-4-NL ball valve is suitable for use with plastic pipe or tubing.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: FB500-4-NL

Technical Specifications

• ASTM: ASTM B62, ASTM B584
• AWWA: AWWA C800
• End Connection 1: MPT
• End Connection 2: MPT
• End Connections: MPT
• Inlet Service Size: 1
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 4-33/64
• Material: Brass
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• OutletMeter Size: 1
• Pressure - Maximum: 300 psi
• Pressure Class: 300#
• Valve Size: 1 in
• Weight: 2
• Series: FB500
• Type: Ball
• Nominal Size: 1 in
• End Style: MNPT
• Body Material: Brass
• Inlet to Outlet Length: 4-33/64 in
• Pressure Rating: 300 psi
• Softgoods Material: EPDM O-Ring
• Trim Material: Molded EPDM Rubber Seat
• Brand: FORD
• UNSPSC: 40141600
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: FB500-4-NL
