Ford Meter Box FB1000-4-Q-NL Ball Corp Valve 1 in. CC x Quick Joint Brass

Product Description

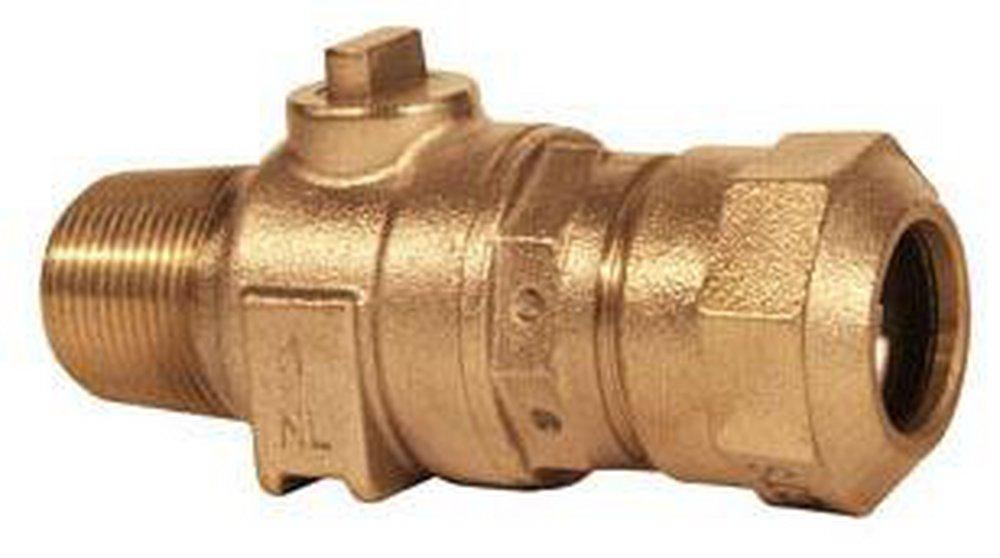

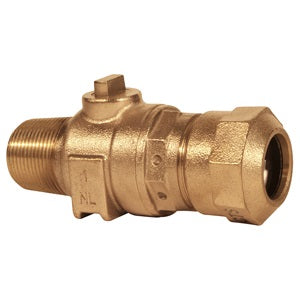

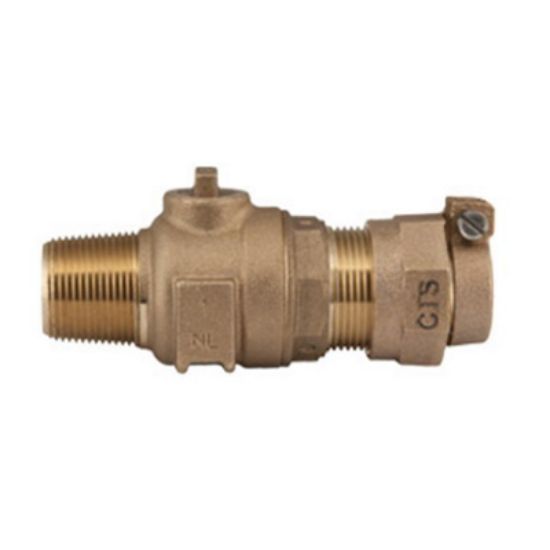

The FORD METER BOX FB1000-4-Q-NL is a brass ball corporation stop valve with a 1 in. CC x Quick Joint connection. It features dual EPDM O-rings in the stem, molded EPDM rubber seats with reinforcing ring support, and a solid one-piece tee-head and stem. Designed for use with copper or plastic tubing.

• Dual EPDM O-rings in the stem
• Molded EPDM rubber seats with reinforcing ring support the ball
• Solid one piece tee-head and stem

Product Highlights

This ball corporation stop is made from no-lead brass and is suitable for use with water. It features a quick joint connection and is designed for durability.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: FB1000-4-Q-NL

Technical Specifications

• Nominal Size: 1 inch
• Connection Type: AWWA/CC Taper Thread Inlet x Flare Copper Thread Outlet
• End Connection: CC Taper Threaded x Flared Copper
• End Connection 1: CC Taper Threaded
• End Connection 2: Flared Copper
• Inlet/Service Size: 1 in.
• Lead Law Compliant: Yes
• Length: 4-1/2 in.
• Material: Brass
• Pressure - Maximum: 300 psi
• Size: 1 in.
• Specifications - AWWA: AWWA C-800
• Specifications - NSF: NSF 61;NSF 372
• Specifications - NSF Certified: Yes
• Product Type: Water Service Brass Corporation Stops
• Series: FB1000
• Type: Ball
• End Style: CC x CTS Quick Joint
• Body Material: Brass
• Inlet to Outlet Length: 4-31/64 in
• Media: Water
• Pressure Rating: 300 psi
• Softgoods Material: EPDM Rubber Seat/EPDM O-Ring
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: FB1000-4-Q-NL
• ASTM B62/B584|AWWA C800|ANSI/NSF 61/372|UNS C89833/C83600/85-5-5-5: ASTM B62/B584|AWWA C800|ANSI/NSF 61/372|UNS C89833/C83600/85-5-5-5
