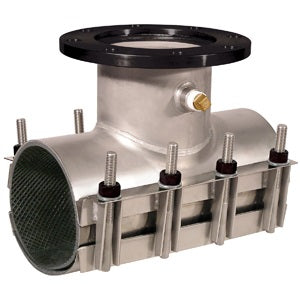

Ford Meter Box FAST-1350-8A 12 X 8 Stainless Steel IPT Tap on Pipe Sleeve

Product Description

The Ford Meter Box FAST-1350-8A is a pipe sleeve made from stainless steel, designed to fit pipe sizes from thirteen point one inches to thirteen point five inches. This product includes a type 304 stainless steel body along with a carbon steel flange meeting AWWA C-207 specifications. It is equipped with a virgin NBR outlet gasket, ensuring durability and reliability. The sleeve is certified by NSF 61 and UL listed, supporting a maximum pressure of two hundred fifty psi.

• Full gasket provides complete pipe coverage.
• Coated stainless steel studs, nuts, and washers prevent galling.
• Applicable for water service uses.

Product Highlights

This sleeve guarantees quality and compliance for various piping needs.

Product Information

Standard Information

• Brand: Ford Meter Box
• Material Type: Stainless Steel, Carbon Steel

Technical Specifications

• ASTM Standards: ASTM A-36, ASTM D-2000
• AWWA Compliance: AWWA C-207
• Fits Pipe Size: 12 inches
• MSS Compliance: MSS SP-60
• NSF Certified: Yes
• Maximum Pressure: 250 psi
• Range: 13.1 inches - 13.5 inches
• Tap Size: 8 inches
• UL Listed: Yes
• OD Range: 13.10 - 13.50 inches
• Torque Specifications: 75 ft. lbs.
