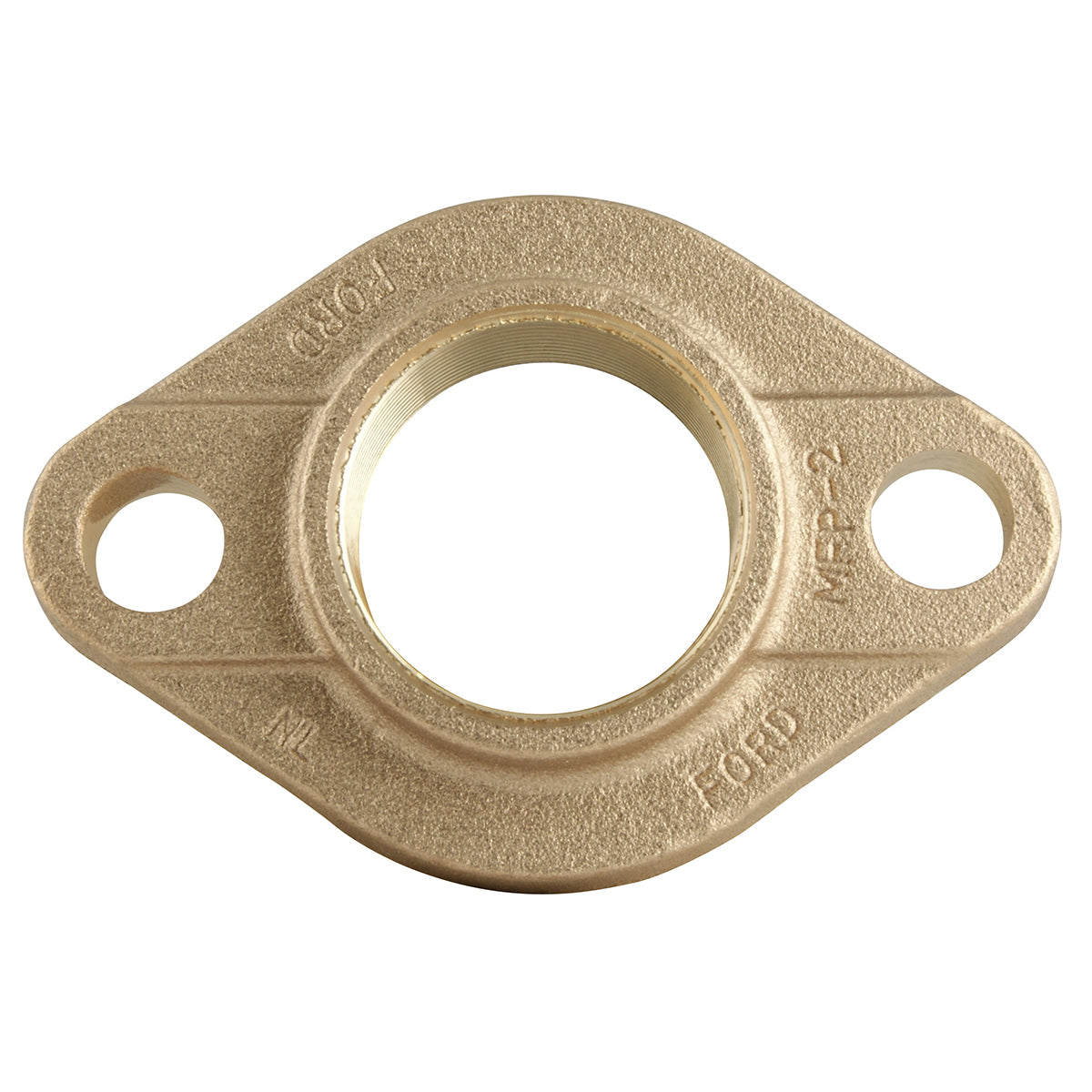

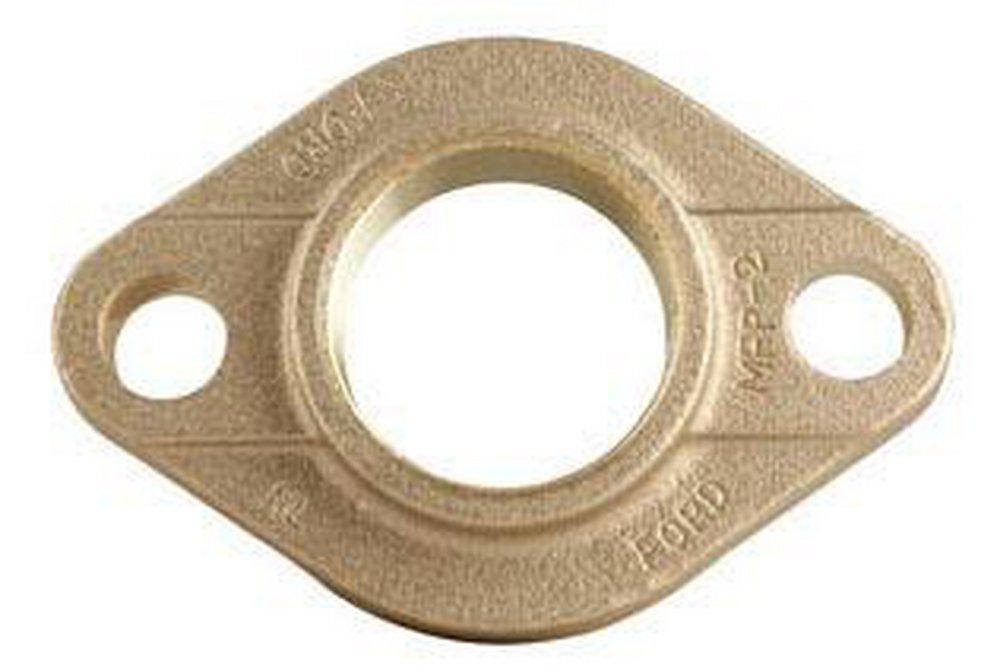

Ford Meter Box cf31-66-nl 1-1/2 flange/fip

Product Description

The FORD METER BOX CF31-66-NL is a 1-1/2" meter flange by 1-1/2" female iron pipe thread. It features a flange fitting/connector type with a 1-1/2 in nominal size. Constructed from lead-free brass, this adapter ensures compliance with lead law standards.

• Lead Law Compliant
• Nominal Size: 1-1/2 in
• End Style: Meter Flange x FNPT

Product Highlights

The FORD CF31-66-NL meter flange is ideal for connecting meters to piping systems, ensuring a secure and compliant connection.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: CF31-66-NL

Technical Specifications

• Fitting/Connector Type: Adapter
• Nominal Size: 1-1/2 in
• End Style: Meter Flange x FNPT
• Material: Lead Free Brass
• Bolt Circle Diameter: 4 in
• Bolt Hole Size: 11/16 in
• Series: CF31
• Thickness: 1 in
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: CF31-66-NL
• AWWA: AWWA C-800
• End Connection 1: Meter Flanged
• End Connection 2: FIPT
• End Connections: Meter Flanged x FIPT
• Fitting Size 1: 1-1/2
• Fitting Size 2: 1-1/2
• Fitting Sizes: 1-1/2 in
• Fitting Type: Straight
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Product Type: Flange
