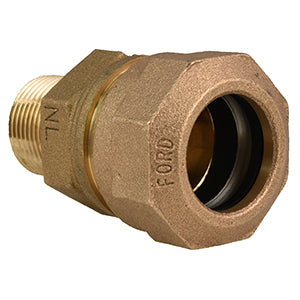

Ford Meter Box c86-34-q-nl Mip Pe Pipe Quick Joint Coupling

Product Description

The FORD METER BOX c86-34-q-nl is a no-lead coupling designed to connect a 3/4 inch male iron pipe thread (MIP) fitting to a 1 inch polyethylene (PE) pipe using a quick joint (QJ) connection. This fitting is built for water service line applications where a transition between threaded iron pipe and PE pipe is required. The no-lead construction meets safe drinking water standards for potable water systems. Weighing approximately 1 pound, it is a compact, field-ready fitting suited for installation by licensed plumbers and water utility contractors.

This coupling is used in residential and light commercial water service installations, particularly where a threaded iron pipe component must be joined to a polyethylene service line. The quick joint end simplifies field assembly without requiring additional compression tools for the PE pipe connection, making it practical for new service installations and repair work at the meter box or curb stop.

Key Features

• No-lead construction meets safe drinking water compliance requirements for potable water applications
• 3/4 inch MIP thread end connects directly to standard male iron pipe threaded fittings
• 1 inch PE pipe quick joint end simplifies connection to polyethylene service lines
• Compact and lightweight at approximately 1 pound for easy handling in the field
• Designed for water service line transitions between threaded and PE pipe systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for water service applications requiring a 3/4 inch MIP to 1 inch PE pipe transition with a quick joint connection.

Installation Notes

Installation should be performed by a licensed plumber or water service technician in accordance with local plumbing codes and applicable IPC requirements. Shut off the water supply and relieve line pressure before making any connections. Ensure the PE pipe end is cut cleanly and squarely before inserting into the quick joint end to achieve a proper seal. Do not overtighten the MIP threaded end, as damage to the thread form may result in leaks.

Technical Specifications

• Inlet Thread Size: 3/4 inch MIP (Male Iron Pipe Thread)
• Outlet Pipe Size: 1 inch PE Pipe
• Connection Type: Quick Joint (QJ)
• Lead Content: No Lead
• Weight: 1 pound

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: c86-34-q-nl
