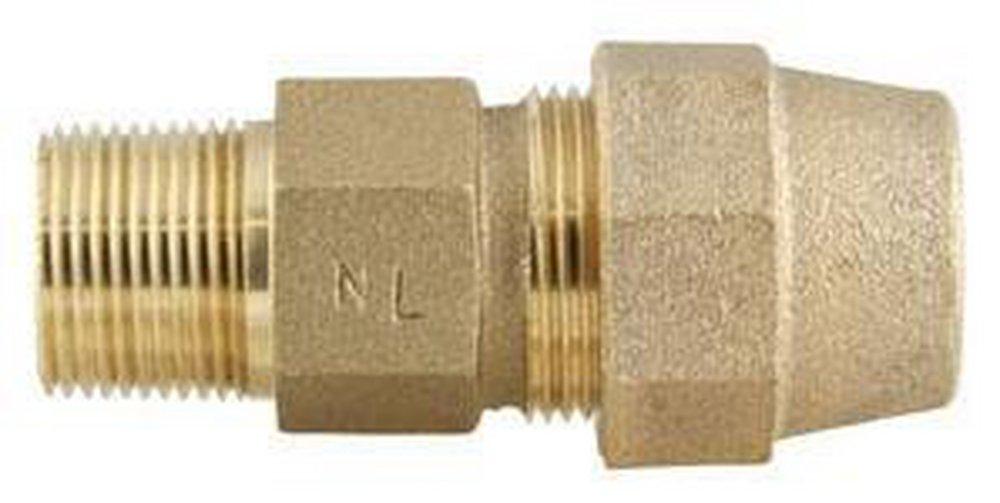

Ford Meter Box C84-33-G-NL Coupling 3/4 inch

Product Description

The FORD METER BOX C84-33-G-NL is a coupling with a 3/4" male iron pipe thread by 3/4" CTS grip joint. Beveled EPDM rubber gasket provides hydraulic seal. Phosphor bronze gripper ring offers axial restraint. Ends are integral or secured with adhesive to prevent unintentional disassembly.

• Beveled EPDM rubber gasket provides hydraulic seal
• Phosphor bronze gripper ring for axial restraint
• Ends are integral or secured with adhesive to prevent unintentional disassembly

Product Highlights

This coupling features a male iron pipe thread and CTS grip joint, ensuring secure connections.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: C84-33-G-NL

Technical Specifications

• Item Number: C84-33-G-NL
• Approximate Weight: 1.0000 lb
• Type: Lead-Free
• Nominal Size A: 3/4 inch
• Nominal Size B: 3/4 inch CTS
• Material: Brass
• Connection Type: MNPT x Grip Joint
• Length: 2-1/4 inch
• Standards: NSF/ANSI, AWWA
• ANSI: ANSI 61, ANSI 372
• ASTM: ASTM B62, ASTM B584
• AWWA: AWWA C800
• End Connection 1: MPT
• End Connection 2: Grip Joint
• End Connections: MPT x Grip Joint
• Fitting Size 1: 3/4
• Fitting Size 2: 3/4
• Fitting Sizes: 3/4 in
• Fitting Type: Straight, Coupling
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• UL Listed: Yes
