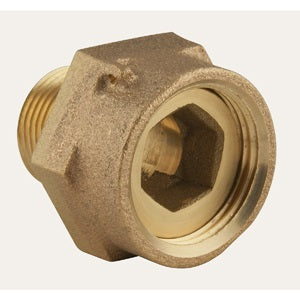

Ford Meter Box c38-44-2-nl 1 in Meter Swivel Nut Mip Coupling

Product Description

The FORD METER BOX c38-44-2-nl is a 1-inch lead-free coupling designed for water meter connections in potable water distribution systems. It features a 1-inch meter swivel nut on one end and a 1-inch male iron pipe thread on the other, measuring 2 inches in length. This fitting bridges the meter outlet to downstream piping, providing a secure, leak-resistant joint. Licensed plumbers and water utility contractors install this coupling during meter set installations and service line work where lead-free compliance is required by code.

This coupling is suited for residential and light commercial water meter installations. It is commonly used at the meter pit or vault where the meter outlet transitions to threaded service line piping. The swivel nut end allows for easy hand-start alignment before final tightening, reducing cross-threading risk in tight meter box conditions. It is appropriate for new construction meter sets and meter replacement service calls.

Key Features

• Lead-free construction meets Safe Drinking Water Act requirements for potable water service
• 1-inch meter swivel nut end for easy alignment and connection to meter outlet
• 1-inch male iron pipe thread end for connection to threaded service line fittings
• Compact 2-inch body length suits confined meter box installations
• Weighs 0.62 pounds for straightforward single-hand handling during installation

Compatibility

Designed as an OEM-style replacement coupling for 1-inch potable water meter connections using standard meter swivel nut and male iron pipe thread configurations.

Installation Notes

Installation should be performed by a licensed plumber or certified water utility technician in accordance with local plumbing codes and applicable IPC requirements. Shut off the water service and relieve line pressure before removing or installing any meter coupling. Use an appropriate pipe wrench on the MIP end and a meter nut wrench on the swivel nut end to achieve a proper seal without over-torquing the fitting. Inspect threads and the swivel nut seat for debris or damage before assembly.

Technical Specifications

• Connection End 1: 1 inch Meter Swivel Nut
• Connection End 2: 1 inch Male Iron Pipe Thread
• Body Length: 2 inches
• Lead-Free: Yes
• Weight: 0.62 pounds
• Box Quantity: 22

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: c38-44-2-nl
