Ford Meter Box BFA13-777W-NL Angle Ball Valve 2 in Replacement BFA13

Product Description

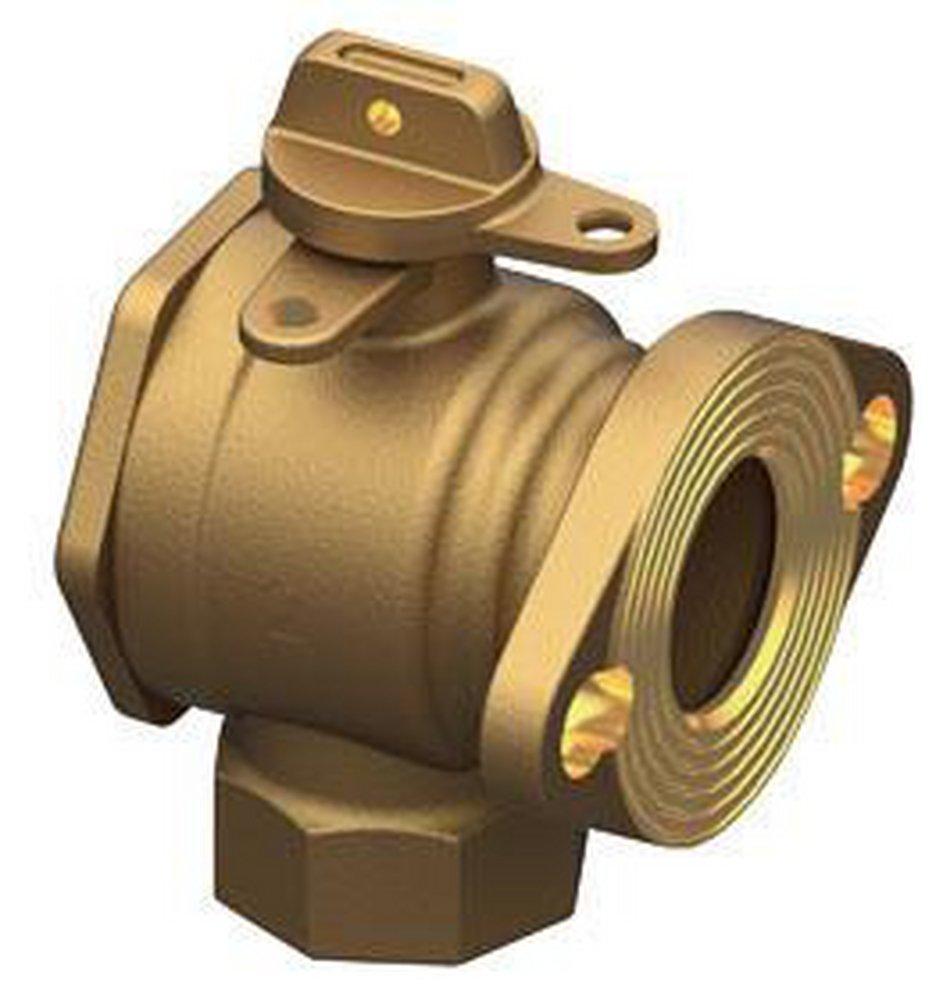

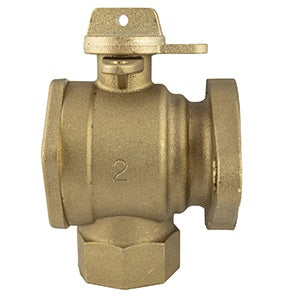

The FORD METER BOX BFA13-777W-NL is a ball meter angle valve with a 2-inch nominal size and FNPT x Meter Flange end style. Suitable for customer side shut off up to 300 psi. Features a snap ring that locks the stem into the body and a padlock wing for locking the valve in a closed position.

• Snap ring locks the stem into the body
• Padlock wing for locking valve
• Solid one piece tee-head and stem

Product Highlights

The valve has a solid one-piece tee-head and stem, with a hole for attaching a handle. It is designed for durability and secure operation.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: BFA13-777W-NL

Technical Specifications

• End Style: FNPT x Meter Flange
• Nominal Size: 2 in
• Material: Brass
• Body Material: Brass
• End Size: 2 in
• Inlet to Outlet Length: 2-13/16 in
• Pressure Rating: 300 psi
• Series: BFA13
• Softgoods Material: Buna-N O-Ring
• Trim Material: Molded EPDM Rubber Seat
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: BFA13-777W-NL
• Type: Straight Meter
