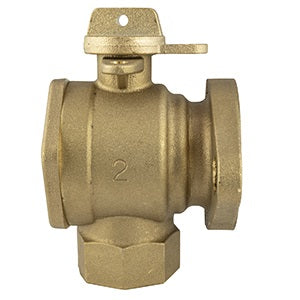

Ford Meter Box bfa13-677w-nl Angle Ball Valve 1-1/2 in

Product Description

The FORD METER BOX bfa13-677w-nl is a no-lead flanged angle ball valve designed for water meter installations. It provides a reliable shutoff in pressurized water service lines, allowing technicians to isolate flow at the meter connection point. The valve features a 2-inch female iron pipe thread inlet and a 1-1/2-inch meter flange outlet in an angle-body configuration. Weighing 7.64 pounds, it is built for durable field service. The no-lead construction meets federal and state safe drinking water requirements for potable water systems. Licensed plumbers and water utility technicians are the primary installers for this type of valve.

This angle ball valve is used in residential and light commercial water meter settings where a flanged meter connection is required. The angle-body design allows for compact installation in meter pits, vaults, and curb boxes where straight inline valves would not fit the service configuration. The 2-inch female iron pipe thread connection accommodates standard service line piping, and the 1-1/2-inch meter flange mates directly to compatible meter flanges. It is sold in a box quantity of 2.

Key Features

• No-lead construction compliant with safe drinking water standards for potable water service
• Angle-body configuration suited for meter pit and vault installations
• 2-inch female iron pipe thread inlet for standard service line connection
• 1-1/2-inch meter flange outlet for direct meter mating
• Full-port ball valve design provides positive shutoff
• Box quantity of 2 for multi-unit or replacement stocking

Compatibility

Designed as an OEM-style replacement or new-installation valve for residential and commercial water meter assemblies requiring a flanged angle ball valve with a 2-inch female iron pipe thread by 1-1/2-inch meter flange configuration.

Installation Notes

Installation should be performed by a licensed plumber or qualified water utility technician in accordance with applicable local plumbing codes and IPC requirements. Shut off and depressurize the service line before removing or installing the valve. Inspect flange gaskets and thread connections for proper seating before returning the line to service. Do not overtighten iron pipe thread connections, as this can damage the valve body or mating fittings.

Technical Specifications

• Inlet Connection: 2-inch female iron pipe thread
• Outlet Connection: 1-1/2-inch meter flange
• Body Style: Angle
• Lead Compliance: No lead
• Weight: 7.64 pounds
• Box Quantity: 2

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: bfa13-677w-nl
