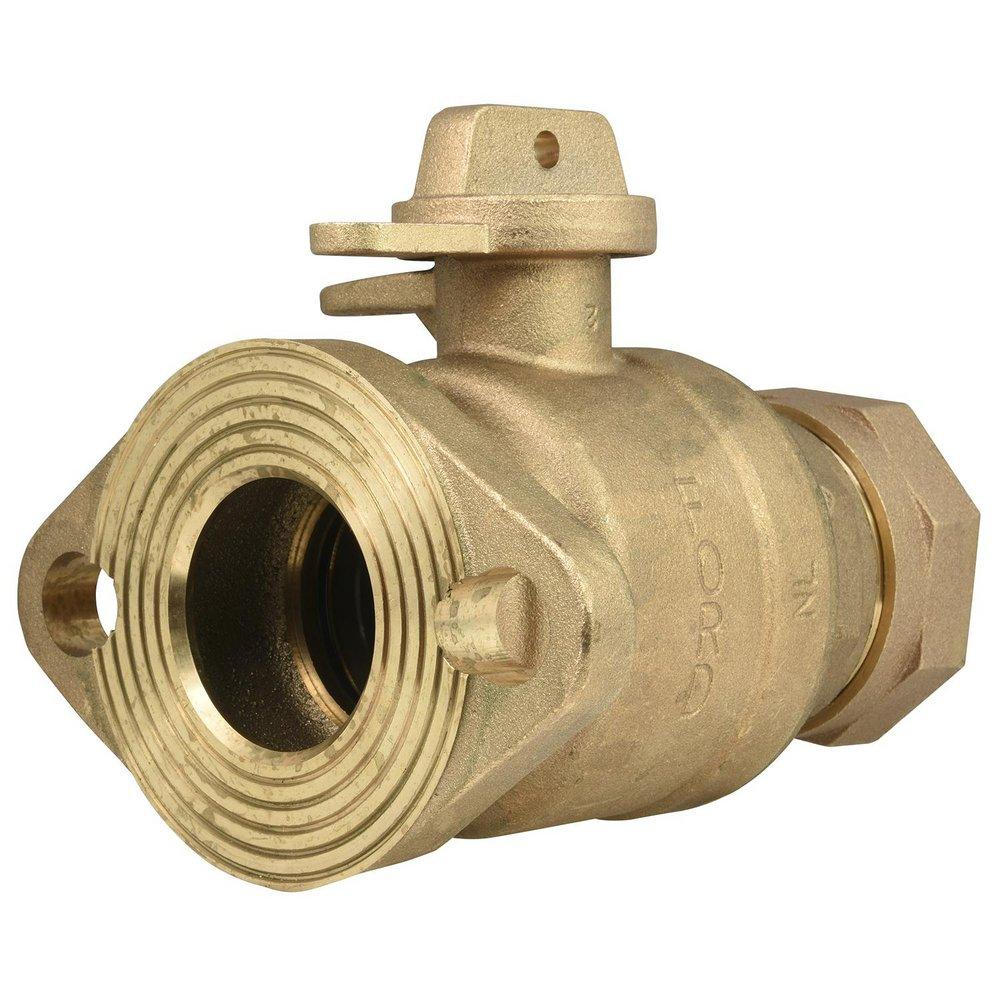

Ford Meter Box BF43-777W-Q-NL 2 in. Quick Joint x Meter Flanged Brass Straight Ball Flange Meter Valve

Product Description

The FORD METER BOX BF43-777W-Q-NL is a 2 in. Quick Joint x Meter Flanged Brass Straight Ball Flange Meter Valve. It has a maximum pressure of 300 psi and is suitable for use with 2 inch nominal pipes. The valve body is constructed from brass, with a molded EPDM rubber seat trim and EPDM O-Ring/Buna-N Rubber Gasket softgoods.

• Requires Certification
• Lead Law Compliant
• Valve is non-directional and is watertight with flow in either direction

Product Highlights

This straight meter valve features quick joint nut for CTS x meter flange end style and a padlock wing for locking the valve in closed position.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: BF43-777W-Q-NL

Technical Specifications

• ANSI: ANSI 61, ANSI 372
• ASTM: ASTM B62, ASTM B584
• AWWA: AWWA C800
• End Connection 1: Quick Joint
• End Connection 2: Meter Flanged
• End Connections: Quick Joint x Meter Flanged
• Inlet Service Size: 2
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 6-3/32
• Material: Brass
• Material Type: EPDM
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• OutletMeter Size: 2
• Pressure - Maximum: 300 psi
• Pressure Class: 300#
• Valve Seat Material: EPDM
• Valve Size: 2 in
• Type: Straight Meter
• Nominal Size: 2 in
• End Style: CTS Quick Joint Nut x Meter Flange
• Body Material: Brass
• End Size: 2 in
• Inlet to Outlet Length: 6-3/32 in
• Pressure Rating: 300 psi
• Series: BF43
• Softgoods Material: EPDM O-Ring/Buna-N Rubber Gasket
• Trim Material: Molded EPDM Rubber Seat
• Brand: FORD
• UNSPSC: 40141600
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: BF43-777W-Q-NL
• Box Quantity: 3
