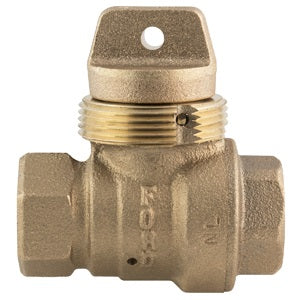

Ford Meter Box bc11-444swm-nl 1 in Ball Valve Fip Sw No Lead

Product Description

The FORD METER BOX bc11-444swm-nl is a 1-inch no-lead ball valve configured with female iron pipe thread (FIP) on both ends and a stop-and-waste (SW) function. It is designed for inline shutoff and controlled drainage of water supply lines. The stop-and-waste feature allows the operator to shut off flow and simultaneously drain the downstream section of pipe, making it well-suited for freeze protection in outdoor or seasonal water supply applications. Licensed plumbers and waterworks contractors install this valve in residential and light commercial water service work.

This valve is used in water distribution and building supply piping where a reliable manual shutoff with downstream drain capability is required. The 1-inch FIP by FIP connection pattern fits standard threaded pipe assemblies. The no-lead construction meets drinking water compliance requirements, making it appropriate for potable water systems in jurisdictions that enforce low-lead or no-lead standards. Typical applications include service line shutoffs, irrigation supply feeds, and exterior hose bib supply risers where winterization drainage is needed.

Key Features

• No-lead construction meets potable water compliance requirements for low-lead jurisdictions
• Stop-and-waste design allows downstream pipe drainage at shutoff to prevent freeze damage
• 1-inch FIP by 1-inch FIP threaded connections for standard pipe assembly
• Ball valve mechanism provides full-bore shutoff with quarter-turn operation
• Sold in a box quantity of 6, suitable for stocking or multi-unit jobs

Compatibility

Designed as an OEM-style replacement or new-installation valve for 1-inch threaded water supply piping systems requiring a no-lead stop-and-waste shutoff.

Installation Notes

Installation is performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the main water supply and relieve system pressure before threading the valve into the line. Apply thread sealant tape or compound to all male threads before assembly and tighten to snug fit using appropriate pipe wrenches. Do not use the valve body as leverage during tightening, as this may damage the internal ball mechanism.

Technical Specifications

• Valve Size: 1 inch
• End Connections: Female Iron Pipe Thread (FIP) x Female Iron Pipe Thread (FIP)
• Valve Type: Ball Valve with Stop and Waste
• Lead Compliance: No Lead
• Weight: 3.19 pounds
• Box Quantity: 6

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: bc11-444swm-nl
