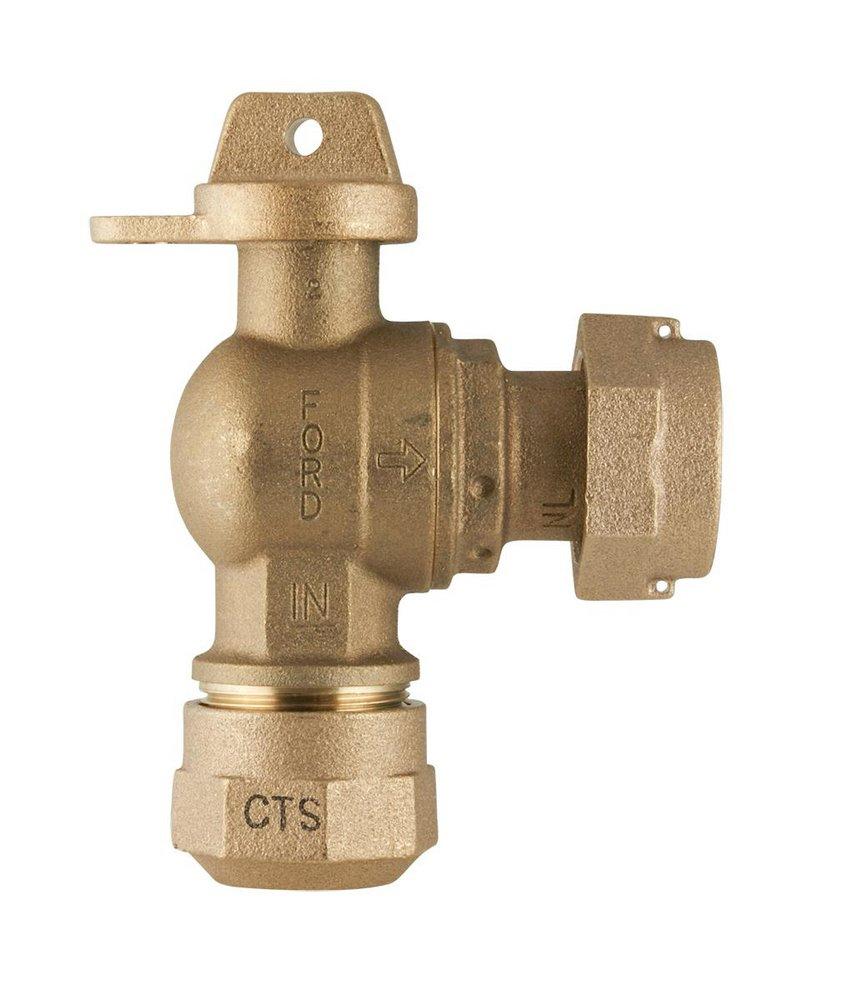

Ford Meter Box BA43-444W-Q-NL Angle Meter Valve 1 in. Quick Joint x Meter Swivel Nut

Product Description

The FORD METER BOX BA43-444W-Q-NL is an angle meter valve with a 1 in. quick joint x meter swivel nut. It is designed for use in waterworks applications. The valve is rated to 300 psi and features a brass body and molded EPDM rubber seat trim.

• Ends are integral or secured with adhesive to prevent unintentional disassembly
• Hole for attaching handle is provided in Tee-head
• Padlock wing for locking the valve in closed position

Product Highlights

This angle meter valve is ideal for use in a variety of plumbing and waterworks applications.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: BA43-444W-Q-NL
• Country of Origin: United States

Technical Specifications

• End Style: CTS Quick Joint Nut x Meter Swivel Nut
• Nominal Size: 1 in
• End Size: 1 in
• Pressure Rating: 300 psi
• Body Material: Brass
• Trim Material: Molded EPDM Rubber Seat
• Softgoods Material: EPDM O-Ring/Buna-N Rubber Gasket
• Series: BA43
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: BA43-444W-Q-NL
• Type: Angle Meter
• Inlet to Outlet Length: 2-43/64 in
• Material: Brass
• Size: 1"
• Country of Origin: United States
• Approximate Weight: 3.0000 lb
