Ford Meter Box BA43-332W-Q-NL Angle Meter Valve 3/4 in

Product Description

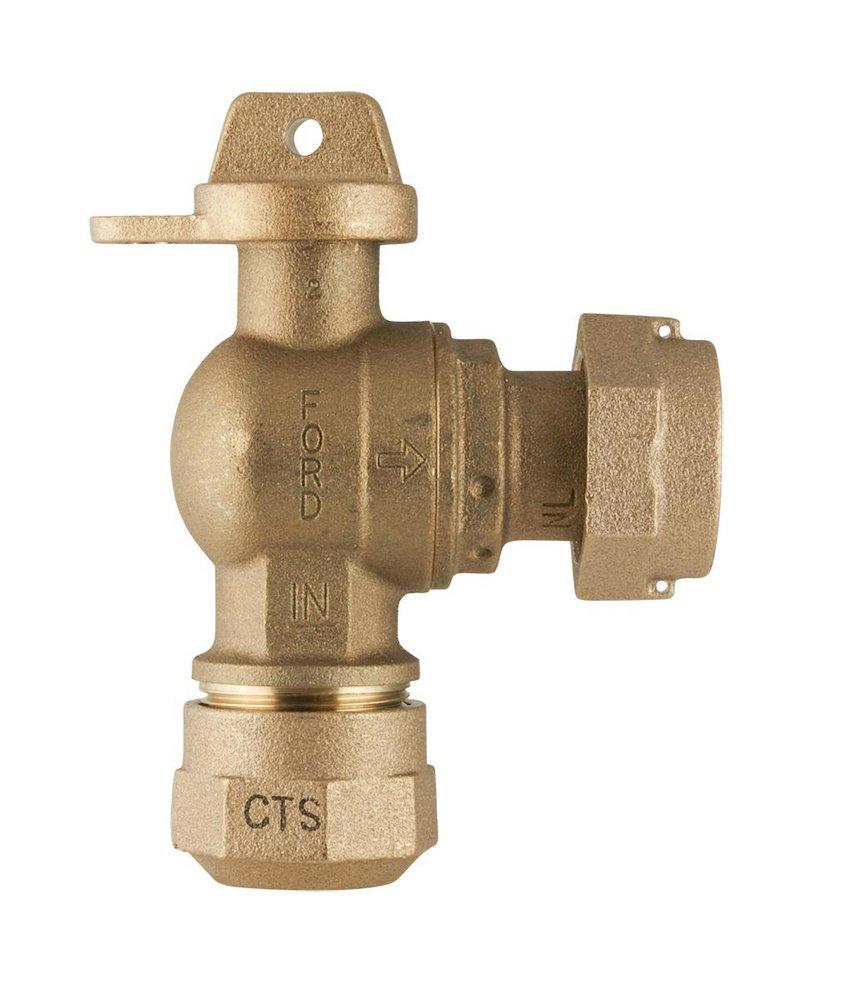

The FORD METER BOX BA43-332W-Q-NL is a ball meter angle valve with a 3/4 in nominal size. Features quick joint nut for CTS x meter swivel nut end style. Constructed with a brass body and molded EPDM rubber seat trim, it ensures durability and reliable performance. Suitable for various plumbing applications.

• Ends are integral or secured with adhesive to prevent unintentional disassembly
• Hole for attaching handle is provided in Tee-head
• Padlock wing for locking the valve in closed position

Product Highlights

3/4 in nominal size, brass body, and EPDM rubber components ensure durability and reliable performance.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: BA43-332W-Q-NL

Technical Specifications

• Type: Angle Meter
• Nominal Size: 3/4 in
• End Style: CTS Quick Joint Nut x Meter Swivel Nut
• Material: Brass
• Body Material: Brass
• End Size: 3/4 in
• Inlet to Outlet Length: 2-19/64 in
• Pressure Rating: 300 psi
• Series: BA43
• Softgoods Material: EPDM O-Ring/Buna-N Rubber Gasket
• Trim Material: Molded EPDM Rubber Seat
• Brand: FORD
• UNSPSC: 40141600
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: BA43-332W-Q-NL
