Ford Meter Box B81-777-NL Ball Curb Valve 2 in. Replacement MPN

Product Description

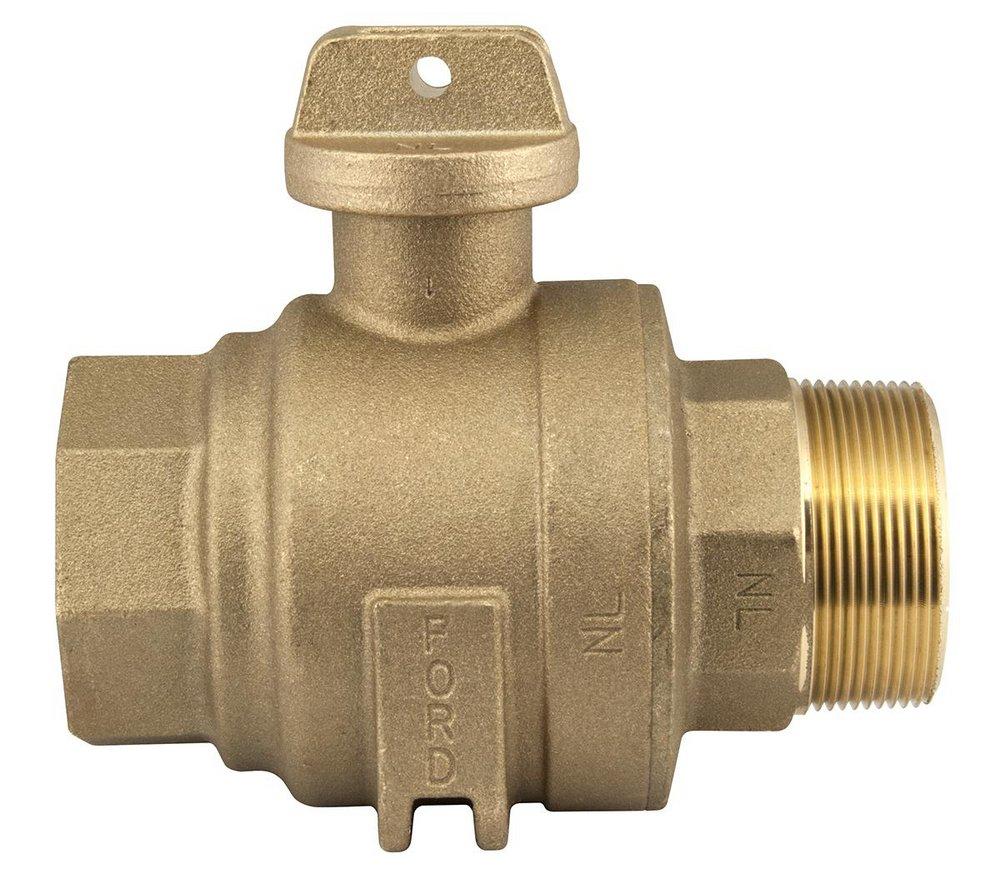

The FORD METER BOX B81-777-NL is a 2 in. ball valve curb stop ideal for use in water service lines. Watertight in either direction at pressures up to 300 psi, it features easy turning, nonbinding operation, and minimum pressure loss. The valve is non-directional with flow in either direction.

• Valve is non-directional and is watertight with flow in either direction
• Ends are integral or secured with adhesive to prevent unintentional disassembly
• Hole for attaching curb box rod or handle is provided in Tee-head

Product Highlights

Ideal for water service lines, this valve offers watertight performance up to 300 psi and includes a Tee-head with a hole for attaching a curb box rod or handle.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: B81-777-NL

Technical Specifications

• Type: Straight Curb
• Nominal Size: 2 in
• End Style: MNPT x FNPT
• Material: Brass
• Body Material: Brass
• End Size: 2 in
• Inlet to Outlet Length: 6-9/64 in
• Pressure Rating: 300 psi
• Series: B81
• Softgoods Material: EPDM O-Ring
• Trim Material: Molded EPDM Rubber Seat
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: B81-777-NL
